HB56G136

Features: · 72-pin single in-line package -Outline: 107.95 mm (Length) ×25.40 mm (Height) × 9.14/5.28 mm (Thickness) -Lead pitch: 1.27 mm· Single 5 V (±5%) supply· High speed -Access time: tRAC = 60 /70ns (max)· Low power dissipation -Active mode: 2.73/2.42 W (max) (HB56G236 Series) 2.63/2.31 W (m...

product image

HB56G136 Picture
See larger image
SeekIC No. : 004358932 Detail

HB56G136: Features: · 72-pin single in-line package -Outline: 107.95 mm (Length) ×25.40 mm (Height) × 9.14/5.28 mm (Thickness) -Lead pitch: 1.27 mm· Single 5 V (±5%) supply· High speed -Access time: tRAC = 60...

HB56G136 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HB56G136
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  72-pin single in-line package
     - Outline: 107.95 mm (Length) ×25.40 mm (Height) × 9.14/5.28 mm (Thickness)
     - Lead pitch: 1.27 mm
·  Single 5 V (±5%) supply
·  High speed
     - Access time: tRAC = 60 /70ns (max)
·  Low power dissipation
     - Active mode: 2.73/2.42 W (max) (HB56G236 Series)
       2.63/2.31 W (max) (HB56G136 Series)
     - Standby mode (TTL): 84 mW (max) (HB56G236 Series)
       (TTL): 42 mW (max) (HB56G136 Series)
       (CMOS): 5.25 mW (max) (L-version) (HB56G236 Series)
       (CMOS): 2.63 mW (max) (L-version) (HB56G136 Series)
·  Fast page mode capability
·  Refresh period
     - 1024 refresh cycles: 16 ms
       128 ms (L-version)


Pinout

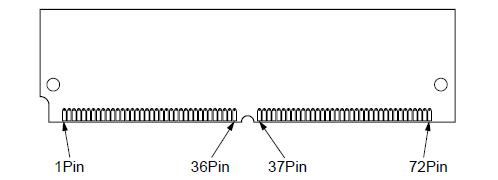

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
VT
1.0 to +7.0
V
Supply voltage relative to VSS
VCC
0.5 to +7.0
V
Short circuit output current
Iout
50
mA
Power dissipation
PT
4
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C



Description

The HB56G236 is a 2M × 36 dynamic RAM module, mounted 4 pieces of 16-Mbit DRAM (HM5118160) sealed in SOJ package and 4 pieces of 2-Mbit DRAM (HM512200) sealed in SOJ package. The HB56G136 is a 1M × 36 dynamic RAM module, mounted 2 pieces of 16-Mbit DRAM (HM5118160) sealed in SOJ package and 2 pieces of 2-Mbit DRAM (HM512200) sealed in SOJ package. An outline of the HB56G236, HB56G136 is 72-pin single in-line package. Therefore, they make high density mounting possible without surface mount technology. They provide common data inputs and outputs. Decoupling capacitors are mounted on the module board.
