HA457

Features: • Pin Compatible, Cable Driving Upgrade for HA456 and MAX456• Fully Buffered Inputs and Outputs (AV = +2)• Routes Any Input Channel to Any Output Channel• Switches Standard and High Resolution Video Signals• Serial or Parallel Digital Interface• Expand...

product image

HA457 Picture
See larger image
SeekIC No. : 004358328 Detail

HA457: Features: • Pin Compatible, Cable Driving Upgrade for HA456 and MAX456• Fully Buffered Inputs and Outputs (AV = +2)• Routes Any Input Channel to Any Output Channel• Switches ...

HA457 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA457
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Pin Compatible, Cable Driving Upgrade for HA456 and MAX456
• Fully Buffered Inputs and Outputs (AV = +2)
• Routes Any Input Channel to Any Output Channel
• Switches Standard and High Resolution Video Signals
• Serial or Parallel Digital Interface
• Expandable for Larger Switch Matrices
• Wide Bandwidth . . . . . . . . . . . . . . . . . . . . . . . .95MHz
• High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . 275V/s
• Low Crosstalk at 10MHz . . . . . . . . . . . . . . . . . . -55dB


Application

• Video Switching and Routing
• Security and Video Editing Systems


Pinout

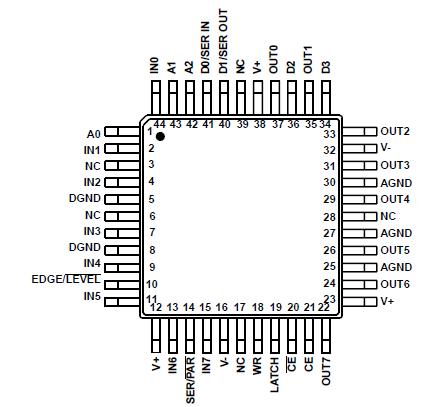

Connection Diagram


Specifications

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . .12V
Positive Supply Voltage (V+) Referred to AGND . . . . . . . . . . .  6V
Negative Supply Voltage (V-) Referred to AGND. . . . . . . . . . . -6V
DGND Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  AGND ±1V
Analog Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .VSUPPLY
Digital Input Voltage . . . . . . . . . . . (V+ + 0.3V) to (DGND - 0.3V)
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . . 1.6kV


Description

The HA457 is an 8 x 8 video crosspoint switch suitable for high performance video systems. Its high level of integration significantly reduces component count, board space, and cost. The crosspoint switch contains a digitally controlled matrix of 64 fully buffered switches that connect eight video input signals to any, or all, matrix outputs. Each matrix output connects to an internal, high-speed (275V/s), gain of two buffer capable of driving 150 to ±2.5V.

The HA457 will directly drive a double terminated video cable with some degradation of differential gain and phase.Applications demanding the best composite video performance should drive the cable with a unity gain video buffer, such as the HFA1412 quad buffer (see Figure 7).

This crosspoint's three-state output capability makes it feasible to parallel multiple HA457s and form larger switch matrices.
