HA456

Features:

• Fully Buffered Inputs and Outputs (A_V = +1)
• Routes Any Input Channel to Any Output Channel
• Switches Standard and High Resolution Video Signals
• Serial or Parallel Digital Interface
• Expandable for Larger Switch Matrices
• Wide Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . 120MHz
• High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 200V/s
• Differential Gain and Phase . . . . . . . 0.05%, 0.05 Degrees
• Low Crosstalk at 10MHz . . . . . . . . . . . . . . . . . . . . . -55dB




Application

• Professional Video Switching and Routing
• Security and Video Editing Systems

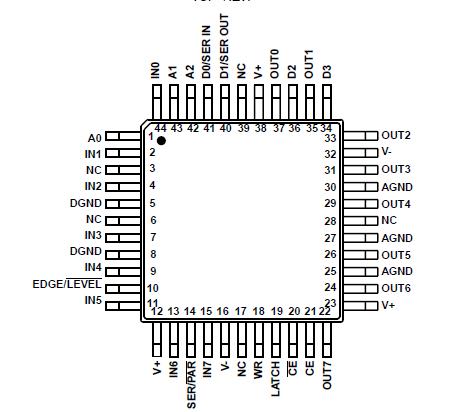

Pinout






Specifications

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V
Positive Supply Voltage (V+) Referred to AGND . . . . . . . . . . . . 6V
Negative Supply Voltage (V-) Referred to AGND. . . . . . . . . . . . -6V
DGND Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGND ±1V
Analog Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . ±VSUPPLY
Digital Input Voltage . . . . . . . . . . . . (V+ + 0.3V) to (DGND - 0.3V)
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . . 1.5kV




Description

The HA456 is the first 8x8 video crosspoint switch suitable for high performance video systems. Its high level of integration significantly reduces component count, board space, and cost. The crosspoint switch contains a digitally controlled matrix of 64 fully buffered switches that connect 8 video input signals to any, or all, matrix outputs. Each matrix output connects to an internal, high-speed (200V/s), unity gain buffer capable of driving 400 and 5pF to ±2V. For applications requiring gain or increased drive capability, the HA456 outputs can be connected directly to two HFA1412 quad, gain of two video buffers, which are capable of driving 75 loads. This crosspoints true high impedance three-state output capability, makes it feasible to parallel multiple HA456s and form larger switch matrices.

The HA456 is the first 8 x 8 video crosspoint switch suitable for high performance video systems. Its high level of integration significantly reduces component count, board space, and cost. The crosspoint switch contains a digitally controlled matrix of 64 fully buffered switches that connect eight video input signals to any, or all, matrix outputs. Each matrix output connects to an internal, high-speed (200V/s),unity gain buffer capable of driving 400 and 5pF to ±2V.

For applications requiring gain or increased drive capability,the HA456 outputs can be connected directly to two HFA1412 quad, gain of two video buffers, which are capable of driving 75 loads.

This crosspoint's true high impedance three-state output capability, makes it feasible to parallel multiple HA456s and
form larger switch matrices.
