HA19216MP

Features: ` 6-bit resolution (including overflow)` 6-bit latched three-state outputs` Maximum conversion Rate: 20 Msps (Min)` Single Power Supply: +5 V` Digital data output, high impedance state control and clock input terminals compatible with TTL and CMOS` Needs no sample and hold circuit` 18-pi...

product image

HA19216MP Picture
See larger image
SeekIC No. : 004358221 Detail

HA19216MP: Features: ` 6-bit resolution (including overflow)` 6-bit latched three-state outputs` Maximum conversion Rate: 20 Msps (Min)` Single Power Supply: +5 V` Digital data output, high impedance state con...

HA19216MP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA19216MP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  6-bit resolution (including overflow)
`  6-bit latched three-state outputs
`  Maximum conversion Rate: 20 Msps (Min)
`  Single Power Supply: +5 V
`  Digital data output, high impedance state control and clock input terminals compatible with TTL and CMOS
`  Needs no sample and hold circuit
`  18-pin DIP package and 28-pin surface mount package.
`  Output current:
    -- IOL = 1.4 mA (guaranteed)
    -- IOH = 5 mA (guaranteed)


Application

·  Pattern recognition using a computer
·  High-speed measuring instruments


Pinout

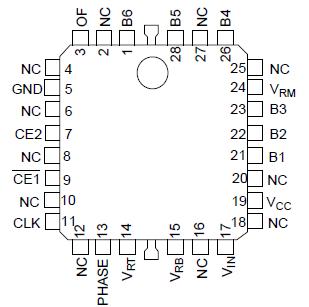

Connection Diagram




Specifications

Item
Symbol
Rating
Unit
Supply voltage
VCC
+7.0
V
Input signal voltage*
VIN
0 to VCC
V
Input reference voltage*
VR
0 to VCC
V
Digital input voltage
VI
0 to VCC
V
Voltage applied to digital output pin in high impedance
VO
0 to VCC
V
Power dissipation
PT
550
mW
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Reference voltage difference
VRT-VRB
1.3
V
Reference center tap voltage
VRM
Open state voltage ± 0.1
V
Note: VIN and VR should not be lower than 1.5 V at the same time.


Description

The HA19216/MP bipolar LSI performs high speed 6-bit A/D conversion. Digital data output and clock input terminals are compatible with TTL and CMOS. The HA19216/MP are designed for video signal processing application.
