Features:

`  6-bit resolution (including overflow)
`  6-bit latched three-state outputs
`  Maximum conversion Rate: 20 Msps (Min)
`  Single Power Supply: +5 V
`  Digital data output, high impedance state control and clock input terminals compatible with TTL and CMOS
`  Needs no sample and hold circuit
`  18-pin DIP package and 28-pin surface mount package.
`  Output current:
    -- IOL = 1.4 mA (guaranteed)
    -- IOH = 5 mA (guaranteed)


Application

·  Pattern recognition using a computer
·  High-speed measuring instruments


Pinout

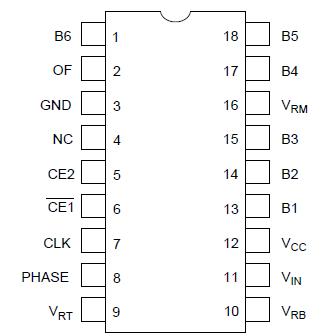

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply voltage
VCC
+7.0
V
Input signal voltage*
VIN
0 to VCC
V
Input reference voltage*
VR
0 to VCC
V
Digital input voltage
VI
0 to VCC
V
Voltage applied to digital output pin in high impedance
VO
0 to VCC
V
Power dissipation
PT
550
mW
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Reference voltage difference
VRT-VRB
1.3
V
Reference center tap voltage
VRM
Open state voltage ± 0.1
V
Note: VIN and VR should not be lower than 1.5 V at the same time.


Description

The HA19216/MP bipolar LSI performs high speed 6-bit A/D conversion. Digital data output and clock input terminals are compatible with TTL and CMOS. The HA19216/MP are designed for video signal processing application.
