HA16666P

Features: · High-speed switching; tr = 80 ns (15 V amplitude) tf = 40 ns (15 V amplitude)· Low power dissipation; 0.3 mA max in standby state 12 mA max in operation state (VIN = 15 V)· Dual-slope highly accurate dead-band duty setup circuit; Setup accuracy Du = ±3% (max)· Wide output pulse width...

product image

HA16666P Picture
See larger image
SeekIC No. : 004358160 Detail

HA16666P: Features: · High-speed switching; tr = 80 ns (15 V amplitude) tf = 40 ns (15 V amplitude)· Low power dissipation; 0.3 mA max in standby state 12 mA max in operation state (VIN = 15 V)· Dual-slope ...

HA16666P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA16666P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High-speed switching;
      tr = 80 ns (15 V amplitude)
      tf = 40 ns (15 V amplitude)
·  Low power dissipation;
      0.3 mA max in standby state
      12 mA max in operation state (VIN = 15 V)
·  Dual-slope highly accurate dead-band duty setup circuit; Setup accuracy Du = ±3% (max)
·  Wide output pulse width control range; 0 to 75%
·  Undervoltage lockout protection;
      VIN high threshold voltage 10 V typ
      VIN low threshold voltage 8 V typ
·  Two input threshold voltage for overcurrent protection cmparator;fixed voltage (1.3 V) variable voltage
·  Double pulse output protection by overcurrent protection circuit with one-pulse latch mode
·  Wide input supply voltage range; VCC = 11 to 40 V




Pinout

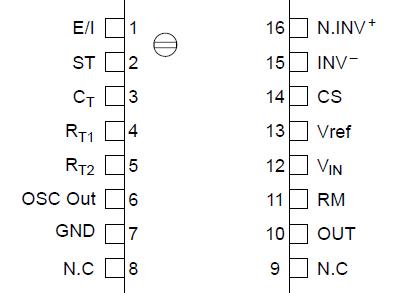

Connection Diagram


Specifications

Item
Symbol
HA16666P
HA16666FP
Unit
Power supply voltage
VIN
+40
+40
V
Output current (Push-pull) DC
IO(DC)
100
100
mA
Peak
IO(peak)
500*1
500*1
mA
Error input
VEI
Vref
Vref
V
OSC input voltage
VOSC
VIN 3VBE
VIN 3VBE
V
CS input voltage
VCS
Vref
Vref
V
RM input voltage
VRM
VIN
VIN
V
RT2 input current
IR2
1
1
mA
RT1 input current
IR1
1
1
mA
Power dissipation
PT
680*2
680*3
mW
Operation temperature
Topr
20 to +85
20 to +85
°C
Storage temperature
Tstg
55 to +125
55 to +125
°C
Notes: 1. Value at 300 ns of switiching time
2. Value at Ta 45°C. If Ta > 45°C, derated by 8.3 mW/°C
3. Value under the condition of 40 mm *40 mm * 0.8 t ceramics board epoxy board


Description

The HA16666P/FP is a voltage mode PWM (pulse width modulation) control IC for switching regulator control. It can drive a power MOS FET efficiently on 600 kHz. Its stanby current is 0.3 mA (max), and it is used as the primary control power supply.
