HA16103FPK

Features: ·Wide operational supply voltage range (VCC = 6 to 40 V)·Various control signals are generated when microcomputer system runaway occurs. (NMI signal and STBY signal are generated by detecting voltage level, and RES signal is generated by monitoring the time after NMI signal is detected)·...

product image

HA16103FPK Picture
See larger image
SeekIC No. : 004358099 Detail

HA16103FPK: Features: ·Wide operational supply voltage range (VCC = 6 to 40 V)·Various control signals are generated when microcomputer system runaway occurs. (NMI signal and STBY signal are generated by detect...

HA16103FPK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HA16103FPK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Wide operational supply voltage range (VCC = 6 to 40 V)
·Various control signals are generated when microcomputer system runaway occurs. (NMI signal and STBY signal are generated by detecting voltage level, and RES signal is generated by monitoring the time after NMI signal is detected)
·Regulated voltage, NMI detecting voltage, STBY detecting voltage are adjustable.
·At low voltage and re-start, the delay time of RES signal is adjustable
·Watchdog timer filtering uses the minimum clock input pulse width and maximum cycle detection method


Pinout

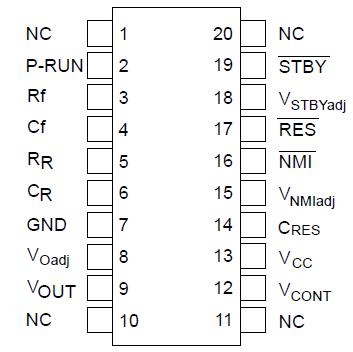

Connection Diagram


Specifications

  Ratings
HA16103FPJ HA16103FPK
Item Symbol Rated Value Unit
VCC supply voltage VCC 40 40 V
Control pin voltage VCONT 40 40 V
Control pin current ICONT 20 20 mA
  VOUT 12 12 V
VOUT pin voltage PT 400*1 400*2 mW
Operating ambient temperature range Topr 40 to +85 40 to +125
Storage temperature range Tstg 50 to +125 50 to +150
Notes:
1. Value under Ta 77. If Ta is greater, 8.3 mW/ derating occurs.
2. Allowable temperature of IC junction part, Tj (max), is as shown below.
Tj (max) = j-a•Pc (max)+Ta (qj-a is thermal resistance value during mounting, and Pc (max) is the maximum value of IC power dissipation.)
Therefore, to keep Tj (max) 125, wiring density and board material must be selected according to the board thermal conductivity ratio shown below.
Be careful that the value of Pc (max) does not exceed that PT.


Description

The HA16103FPJ/FPK monolithic voltage control is designed for microcomputer systems. In addition to voltage regulator, it includes watch dog timer function, power on reset function, and output voltage monitor function.

HA16103FPJ/FPK is suitable for battery use microcomputer systems.
