Product Details

Description



Features:

• Low Offset Voltage . . . . . . . . . . . . . . . . . . . . .. . . . 100V
• Low Offset Voltage Drift . . . . . . . . . . . . . . . . .. . . . 2V/
• Low Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10nV/Hz
• High Open Loop Gain. . . . . . . . . . . . . . . . . . .. . . 600kV/V
• Wide Bandwidth . . . . . . . . . . . . . . . . . . . . .. . . . . . . 8MHz
• Unity Gain Stable


Application

• High Gain Instrumentation Amplifiers
• Precision Data Acquisition
• Precision Integrators
• Precision Threshold Detectors
• For Further Design Ideas, Refer to Application Note 540

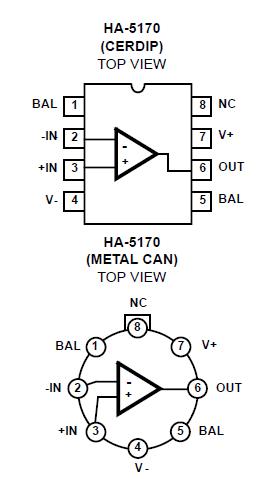

Pinout

Connection Diagram


Specifications

Voltage Between V+ and V- Terminals. . . . . . . . . . . . . . . . . . . . 44V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 30V
Output Short Circuit Duration. . . . . . . . . . . . . . . . . . . . .  . Indefinite


Description

The Intersil HA-5170 is a precision, JFET input, operational amplifier which features low noise, low offset voltage and low offset voltage drift. Constructed using FET/Bipolar technology, the Intersil Dielectric Isolation (DI) process, and laser trimming this amplifier offers low input bias and offset currents. This HA-5170 operational amplifier design also completely eliminates the troublesome errors due to warm-up drift.

Complementing these excellent input characteristics of HA-5170 are dynamic performance characteristics never before available from precision operational amplifiers. An 8V/s slew rate and 8MHz bandwidth allow the designer to extend precision instrumentation applications in both speed and bandwidth.

These characteristics make the HA-5170 well suited for precision integrator amplifier designs. The superior input characteristics also make the HA-5170 ideally suited for transducer signal amplifiers, precision voltage followers and precision data acquisition systems. For application assistance, please refer to Application Note AN540 addressing specifically this device. Military version (-8) product and data sheets available upon request.
