HA-5002

Features:

• Voltage Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.995
• High Input Impedance . . . . . . . . . . . . . . . . . . . . . 3000k
• Low Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . 3
• Very High Slew Rate . . . . . . . . . . . . . . . .. . . . . 1300V/s
• Very Wide Bandwidth . . . . . . . . . . . . . . . . . . . . . . 110MHz
• High Output Current . . . . . . . . . . . . . . . . . . . . . . ±200mA
• Pulsed Output Current . . . . . . . . . . . . . . . . . . . . . . 400mA
• Monolithic Construction




Application

• Line Driver
• Data Acquisition
• 110MHz Buffer
• Radar Cable Driver
• High Power Current Booster
• High Power Current Source
• Sample and Holds
• Video Products

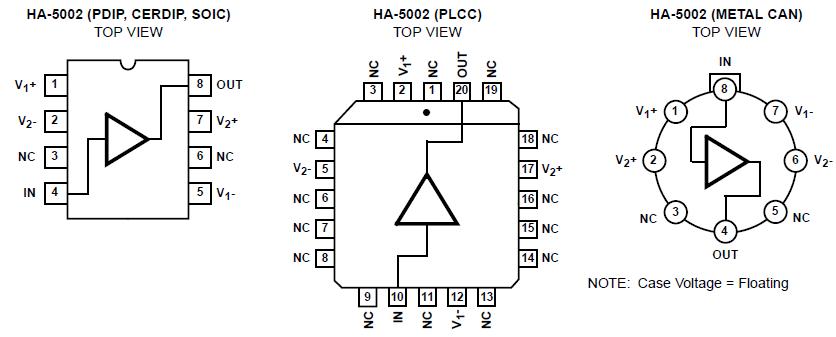

Pinout






Specifications

Voltage Between V+ and V- Terminals. . . . . . . . . . . . . . . . . . . . 44V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V₁+ to V₁-
Output Current (Continuous) . . . . . . . . . . . . . . . . . . . . . . . ±200mA
Output Current (50ms On, 1s Off) . . . . . . . . . . . . . . . . . . . ±400mA




Description

The HA-5002 is a monolithic, wideband, high slew rate, high output current, buffer amplifier.Utilizing the advantages of the Intersil D.I. technologies, the current buffer offers 1300V/s slew rate with 110MHz of bandwidth. The ±200mA output current capability is enhanced by a 3Ω output impedance.The monolithic HA-5002 will replace the hybrid LH0002 with corresponding performance increases. These characteristics range from the 3000kΩ input impedance to the increased output voltage swing. Monolithic design technologies have allowed a more precise buffer to be developed with more than an order of magnitude smaller gain error.It  will provide many present hybrid users with a higher degree of reliability and at the same time increase overall circuit performance.For the military grade product, refer to the HA-5002/883 datasheet.

The HA-5002 is a monolithic, wideband, high slew rate, high output current, buffer amplifier. Utilizing the advantages of the Intersil D.I. technologies, the current buffer offers 1300V/s slew rate with 110MHz of bandwidth. The ±200mA output current capability is enhanced by a 3 output impedance.The monolithic HA-5002 will replace the hybrid LH0002 with corresponding performance increases. These characteristics range from the 3000k input impedance to the increased output voltage swing. Monolithic design technologies have allowed a more precise buffer to be developed with more than an order of magnitude smaller gain error.

The HA-5002 will provide many present hybrid users with a higher degree of reliability and at the same time increase overall circuit performance. For the military grade product, refer to the HA-5002/883 datasheet, AnswerFAX document #3705.
