Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Low Input Noise Voltage Density at 1kHz . 6nV/Hz (Max) 4.3nV/Hz(Typ)
• High Slew Rate . . . . . . . . . . . . . . . . . .. .. .. . . . . . . .1V/s (Min) 3V/s (Typ)
• Unity Gain Bandwidth . . . . . . . . . . . . .. .. .. . .. .. .. .. .. .. . . . . . . 8MHz (Typ)
• High Open Loop Gain (Full Temp) . . . . . . . .. . 100kV/V (Min) 250kV/V (Typ)
• High CMRR, PSRR (Full Temp). . . . . . . . . .. . . . . . . 86dB (Min) 100dB (Typ)
• Low Offset Voltage Drift . . . . . . . . . . . . .. . . . .. . . . .. ... . . . 3V/ (Typ)
• No Crossover Distortion
• Standard Dual PinoutApplication• High Quality Audio Preamplifiers
• High Q Active Filters
• Low Noise Function Generators
• Low Distortion Oscillators

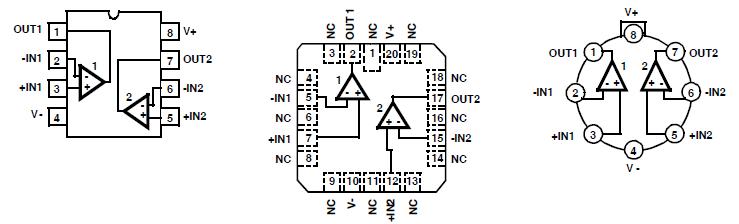

• Low Noise ComparatorsPinout
SpecificationsVoltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Voltage at Either Input Terminal . . . . . . . . . . . . . . .. . . V+ to VPeak
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite
(One Amplifier Shorted to Ground)
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . . . . +300
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
DescriptionLow noise and high performance are key words describing the unity gain stable HA-5102/883. This general purpose dual amplifier offers an array of dynamic specifications including 1V/s slew rate (min), AVCL 1, and 8MHz bandwidth (typ). Complementing these outstanding parameters is a very low noise specification of 4.3nV/Hz at 1kHz (typ), 6nV/Hz (max).
Fabricated using the Intersil standard high frequency D.I. process, these HA-5102/883 operational amplifiers also offer excellent input specifications such as 2.5mV (max) offset voltage and 75nA (max) offset current. Complementing these specifications are 100dB (min) open loop gain and 60dB channel separation (min). Economically, the HA-5102/883 also consumes a very moderate amount of supply power 180mW/ package.
This impressive combination of features make HA-5102/883 amplifier ideally suited for designs ranging from audio amplifiers and active filters to the most demanding signal conditioning and instrumentation circuits.
HA-5102_883 Data Sheet
