GS9029

Features:

• SMPTE 259M compliant
• four isolated outputs (two complimentary pairs),
adjustable from 50mV-1000mV into 75Ω loads
• operational from 143Mb/s to 540Mb/s and beyond
• nominal 500ps rise/fall times
• precise ±7.5% output amplitudes
• 40% system power reduction over GS9007
• 75Ω on-chip input termination resistors
• input hysteresis
• operational down to 80mV input amplitude
• superior output isolation
• "Bus Through" expansion port for fan out requirements




Application

4ƒsc, 4:2:2 and 4:4:4:4 serial digital video co-axial transmission interfaces from 143 to 540Mb/s; General purpose cable driving applications (co-axial cable or UTP).

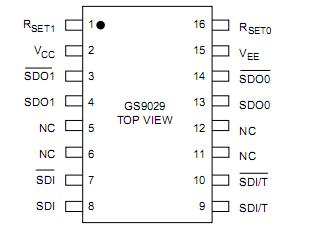

Pinout






Specifications

PARAMETER	VALUE
Supply Voltage (VS=VCC-VEE)	5.5V
Input Voltage Range (any input)	-0.3V to (VCC+0.3)V
Maximum Die Temperature	125°C
Operating Temperature Range	0°C TA 70°C
Storage Temperature Range	-65°C TS 150°C
Lead Temperature (soldering, 10 sec)	260°C

Description

The GS9029 is a second generation bipolar integrated circuit designed to drive four 75Ω co-axial cables.

The GS9029 features two pairs of complementary outputs whose amplitude is controlled within ±7.5%. The output signal levels are also adjustable from 50mVp-p up to 1000mVp-p with little change in other performance parameters. The amplitude of the output stage is varied by adjusting the RSET resistor value. The patented current mode outputs ensure superior output return loss and minimal over shoot. The rise/fall time circuitry allows wide range operation and provides symmetrical balanced outputs to reject power supply noise. In addition high output isolation of GS9029 ensures that the cable driver outputs are not affected by the performance or status of other outputs. Operational with input amplitudes as low as 80mV, the GS9029 provides a robust serial interface.

The GS9029 is packaged in a 16 pin narrow SOIC and operates from a single +5 or -5 volt supply. Typical system power consumption is 320mW which is 40% less than the GS9007.
