GS9015B

Features: • reclocking of SMPTE 259M signals• operational to 400 Mb/s• adjustment free reclocker when used with the GS9000B or GS9000S decoder and GS9010A Automatic Tuning Sub-system• 28 pin PLCC packaging• Pb-free and GreenApplication• 4ƒSC, 4:2:2 and 360 ...

product image

GS9015B Picture
See larger image
SeekIC No. : 004356305 Detail

GS9015B: Features: • reclocking of SMPTE 259M signals• operational to 400 Mb/s• adjustment free reclocker when used with the GS9000B or GS9000S decoder and GS9010A Automatic Tuning Sub-syst...

GS9015B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GS9015B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• reclocking of SMPTE 259M signals
• operational to 400 Mb/s
• adjustment free reclocker when used with the GS9000B or GS9000S decoder and GS9010A Automatic Tuning Sub-system
• 28 pin PLCC packaging
• Pb-free and Green




Application

• 4ƒSC, 4:2:2 and 360 Mb/s serial digital interfaces

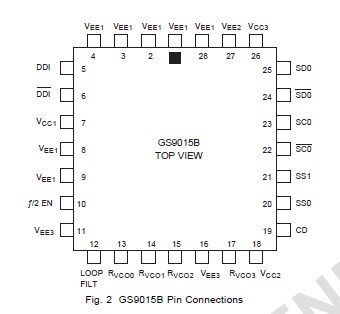

Pinout






Specifications

Supply Voltage ..................5.5 V
Input Voltage Range (any input) VCC+0.5 to VEE-0.5 V
DC Input Current (any one input) ........ 5 mA
Power Dissipation .............. 750 mW
Operating Temperature Range .. 0°C TA 70°C
Storage Temperature Range ..-65°C TS150°C
Lead Temperature (soldering, 10 seconds) ..260°C




Description

The GS9015B is a monolithic IC designed to receive SMPTE 259M serial digital video signals. This device performs the function of data and clock recovery. It interfaces directly with the GENLINX™ GS9000B or GS9000S Decoder. While there are no plans to discontinue the GS9015B, Gennum has developed a successor product with improved features and performance called the GS9035. The GS9035 is recommended for new designs.

The VCO centre frequencies are controlled by external resistors which can be selected by applying a two bit binary code to the Standards Select input pins. Alternatively, the GS9015B can be used with the GS9010A to form an adjustment free reclocker system.

The GS9015B is packaged in a 28 pin PLCC operating from a single +5 or -5 volt supply.
