GM72V66841CLT

Features: ·PC100,PC66 Compatible 7K(2-2-2), 7J(3-2-2), 10K(PC66)·3.3V single Power supply·LVTTL interface· Max Clock frequency 100/125 MHz·4,096 refresh cycle per 64 ms·Two kinds of refresh operation Auto refresh/ Self refresh·Programmable burst access capability ; - Sequence:Sequential / Interlea...

product image

GM72V66841CLT Picture
See larger image
SeekIC No. : 004354183 Detail

GM72V66841CLT: Features: ·PC100,PC66 Compatible 7K(2-2-2), 7J(3-2-2), 10K(PC66)·3.3V single Power supply·LVTTL interface· Max Clock frequency 100/125 MHz·4,096 refresh cycle per 64 ms·Two kinds of refresh operatio...

GM72V66841CLT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GM72V66841CLT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·PC100,PC66 Compatible
  7K(2-2-2), 7J(3-2-2), 10K(PC66)
·3.3V single Power supply
·LVTTL interface
· Max Clock frequency
  100/125 MHz
·4,096 refresh cycle per 64 ms
·Two kinds of refresh operation
  Auto refresh/ Self refresh
·Programmable burst access capability ;
  - Sequence:Sequential / Interleave
  - Length :1/2/4/8/FP
· Programmable CAS latency : 2/3
·4 Banks can operate independently or simultaneously
·Burst read/burst write or burst read/single write operation capability
·Input and output masking by DQM input
·One Clock of back to back read or write command interval
·Synchronous Power down and Clock
  suspend capability with one Clock latency
  for both entry and exit
·JEDEC Standard 54Pin 400mil TSOP II Package

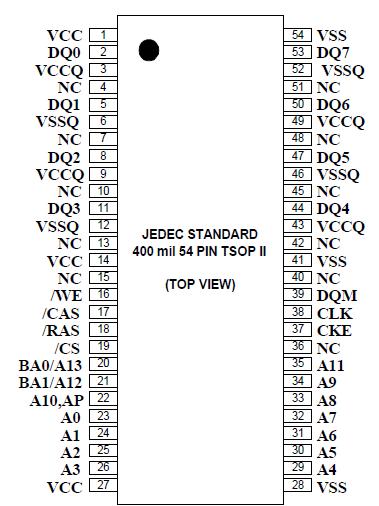

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit Note
Voltage on any pin relative to VSS VT -0.5 to Vcc+0.5
(<= 4.6 (max))		 V 1
Supply voltage relative to VSS VCC -0.5 to +4.6 V 1
Short circuit output current IOUT 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70 C
Storage temperature Tstg -55 to +125 C



Description

The GM72V66841CT/CLT is a synchronous dynamic random access memory comprised of 67,108,864 memory cells and logic including input and output circuits operating synchronously by referring to the positive edge of the externally provided Clock.

The GM72V66841CT/CLT provides four banks of 2,097,152 word by 8 bit to realize high bandwidth with the Clock frequency up to 125 Mhz.
