Product Details

Description



Features:

·4,194,304 Words x 4 Bit Organization
·Extended Data Out Mode Capability
·Single Power Supply (5V+/-10%)
·Fast Access Time & Cycle Time
·Low Power
  Active : 660/605/550mW (MAX)
  Standby : 11mW (CMOS level : MAX)
  : 0.83mW (L-version : MAX)
·RAS Only Refresh, CAS before RAS Refresh,
  Hidden Refresh Capability
·All inputs and outputs TTL Compatible
·2048 Refresh Cycles/32ms
·2048 Refresh Cycles/128ms (L-version)
·Battery Backup Operation (L-version)
·Test Function : 16bit parallel test mode

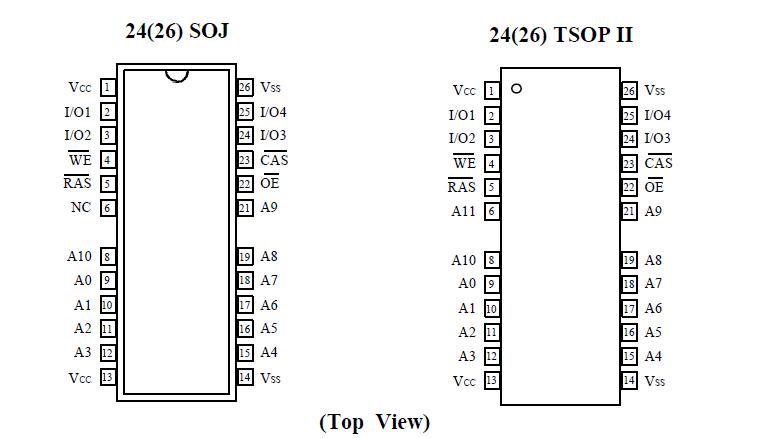

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit
TA Ambient Temperature under Bias 0 ~ 70 C
TSTG Storage Temperature (Plastic) -55 ~ 125 C
VIN/VOUT Voltage on any Pin Relative to VSS -0.5 ~ Vcc+0.5
(<=4.6V(MAX))		 V
VCC Voltage on VCC Relative to VSS -0.5 ~ 4.6 V
IOUT Short Circuit Output Current 50 mA
PD Power Dissipation 10 A



Description

The GM71V(S)17403C/CL is the new generation dynamic RAM organized 4,194,304 words x 4 bit. GM71V(S)17403C/CL has realized higher density, higher performance and various functions by utilizing advanced CMOS process technology. The GM71V(S)17403C/CL offers Extended Data Out (EDO) Page Mode as a high speed access mode. Multiplexed address inputs permit the GM71V(S)17403C/CL to be packaged in a standard 300 mil 24(26) pin SOJ, and a standard 300 mil 24(26) pin plastic TSOP II. The package size provides high system bit densities and is compatible with widely available automated testing and insertion equipment. System oriented features include single power supply 3.3V +/- 0.3V tolerance, direct interfacing capability with high performance logic families such as Schottky TTL.
