Features: ·3.3V, 5V, 12V, 15V and Adjustable output versions·Adjustable version output voltage range 1.23V to 37V ±4% max over line and load conditions·1A output current·Requires Only 4 External Components·High Efficiency·TTL shutdown capability and low power standby mode·Thermal shutdown, current...
GM7110: Features: ·3.3V, 5V, 12V, 15V and Adjustable output versions·Adjustable version output voltage range 1.23V to 37V ±4% max over line and load conditions·1A output current·Requires Only 4 External Com...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PARAMETER | VALUE | UNIT |
Maximum Supply Voltage | 45 | V |
ON/OFF Pin Input Voltage | -0.3 V VIN | V |
Output Voltage to Ground (Steady State) | -1.0 | V |
Power Dissipation | -1.0 | - |
Storage Temperature Range | -65 to + 150 | |
Maximum Junction Temperature | +150 | |
Lead Temperature (Soldering, 10 sec.) | +260 |

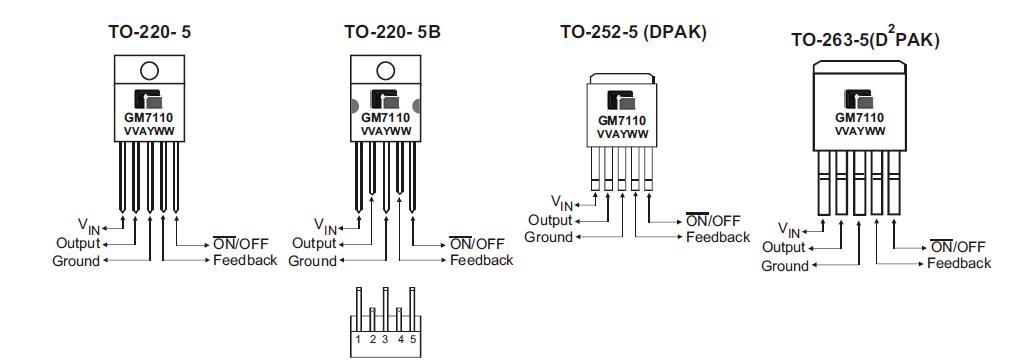

GM7110 of regulators provides all the active functions for a stepdown (buck) switching regulator, and drives 1A load with excellent line and load regulation. GM7110 is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and a versatile Adjustable output version. These regulators are simple to use and require a minimum number of external components.
Features include internal frequency compensation and a fixedfrequency oscillator. GM7110 high-efficiency replacement for popular three-terminal linear regulators, and is requiring a smaller heat sink or even no heat sink. GM7110 performs well with standard inductors from several manufacturers, and simplifying the design of switch-mode power supplies. GM7110 guarantees ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included with 50 A (typical) standby current. The output switch has cycle-by-cycle current limiting as well as thermal shutdown for full protection under fault conditions.
