GM71C17800C

Features: ·2,097,152 Words x 8 Bit Organization·Fast Page Mode Capability·Single Power Supply (5V+/-10%)·Fast Access Time & Cycle Time·Low Power Active : 715/660/605mW (MAX) Standby : 11mW (CMOS level : MAX) 0.83mW (L-version : MAX)·RAS Only Refresh, CAS before RAS Refresh, Hidden Refresh Capa...

product image

GM71C17800C Picture
See larger image
SeekIC No. : 004354168 Detail

GM71C17800C: Features: ·2,097,152 Words x 8 Bit Organization·Fast Page Mode Capability·Single Power Supply (5V+/-10%)·Fast Access Time & Cycle Time·Low Power Active : 715/660/605mW (MAX) Standby : 11mW (CMOS...

GM71C17800C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GM71C17800C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·2,097,152 Words x 8 Bit Organization
·Fast Page Mode Capability
·Single Power Supply (5V+/-10%)
·Fast Access Time & Cycle Time
·Low Power
  Active : 715/660/605mW (MAX)
  Standby : 11mW (CMOS level : MAX)
  0.83mW (L-version : MAX)
·RAS Only Refresh, CAS before RAS Refresh,
  Hidden Refresh Capability
·All inputs and outputs TTL Compatible
·2048 Refresh Cycles/32ms
·2048 Refresh Cycles/128ms (L- version)
·Battery Back Up Operation (L- version)
·Self Refresh Operation (L-version)


Pinout

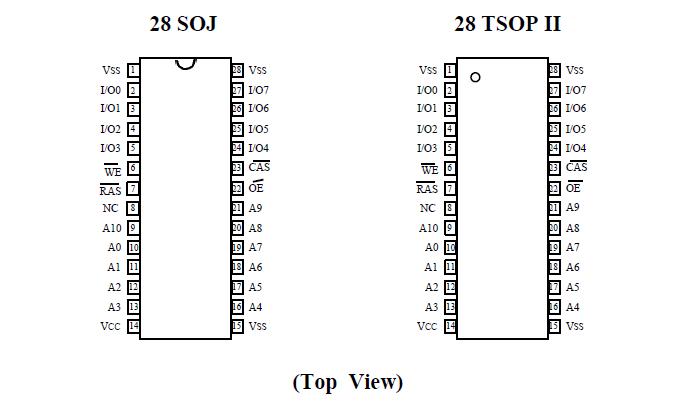

Connection Diagram


Specifications

Symbol Parameter Rating Unit
TA Ambient Temperature under Bias 0 ~ +70 C
TSTG Storage Temperature (Plastic) -55 ~ +125 C
VIN/OUT Voltage on any Pin Relative to VSS -1.0 ~ +7.0V V
VCC Voltage on VCC Relative to VSS -1.0 ~ +7.0V V
IOUT Short Circuit Output Current 50 mA
PT Power Dissipation 1.0 W



Description

The GM71C(S)17800C/CL is the new generation dynamic RAM organized 2,097,152 x 8 bit. GM71C(S)17800C/CL has realized higher density, higher performance and various functions by utilizing advanced CMOS process technology. The GM71C(S)17800C/CL offers Fast Page Mode as a high speed access mode. Multiplexed address inputs permit the GM71C(S)17800C/CL to be packaged in standard 400 mil 28pin plastic SOJ, and standard 400mil 28 pin plastic TSOP II. The package size provides high system bit densities and is compatible with widely available automated testing and insertion equipment.
