FSTU32X384

Features: ·4Ω switch connection between two ports· Minimal propagation delay through the switch· Ultra low power with < 0.1 µA typical ICC· Zero ground bounce in flow-through mode· Control inputs compatible with TTL level· See Application Note AN-5008 for details on FSTU - Undershoo...

product image

FSTU32X384 Picture
See larger image
SeekIC No. : 004344884 Detail

FSTU32X384: Features: ·4Ω switch connection between two ports· Minimal propagation delay through the switch· Ultra low power with < 0.1 µA typical ICC· Zero ground bounce in flow-through mode· Co...

FSTU32X384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSTU32X384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·4Ω switch connection between two ports
· Minimal propagation delay through the switch
· Ultra low power with < 0.1 µA typical ICC
· Zero ground bounce in flow-through mode
· Control inputs compatible with TTL level
· See Application Note AN-5008 for details on FSTU - Undershoot Protected Fairchild Switch Family


Pinout

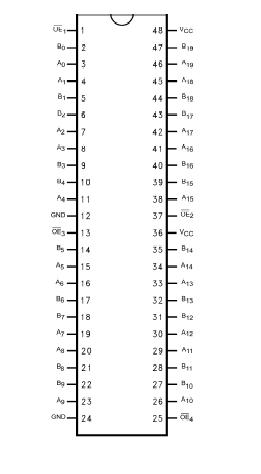

Connection Diagram


Specifications

Supply Voltage (VCC)                              −0.5V to +7.0V
DC Switch Voltage (VS)                           −0.5V to +7.0V
DC Input Voltage (VIN) (Note 2)             −0.5V to +7.0V
DC Input Diode Current (IIK) VIN < 0V               −50 mA
DC Output (IOUT) Sink Current                           128 mA
DC VCC/GND Current (ICC/IGND)                    ± 100 mA
Storage Temperature Range (TSTG) −65°C to +150°C


Description

The Fairchild Switch FSTU32X384 provides 20 bits of highspeed CMOS TTL-compatible bus switches. The low OnResistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device is organized as four 5-bit switches with separate bus enable (OE) signals. When OE is LOW, the FSTU32X384 is ON and Port A is connected to Port B. When OE is HIGH, the switch is OPEN  and a high-impedance state exists between the two ports.

The A and B Ports of FSTU32X384 are protected against undershoot to support an extended range to 2.0V below ground. Fairchild's integrated Undershoot Hardened Circuit (UHC) senses undershoot at the I/O and responds by preventing voltage differentials from developing and turning the switch on.
