FSTU16245

Features: ` Undershoot hardened to −2V (A and B Ports)` 4 switch connection between two ports.` Minimal propagation delay through the switch.` Low lCC.` Zero bounce in flow-through mode.` Control inputs compatible with TTL level.` See Application Note AN-5008 for detailsPinoutSpecificationsS...

product image

FSTU16245 Picture
See larger image
SeekIC No. : 004344875 Detail

FSTU16245: Features: ` Undershoot hardened to −2V (A and B Ports)` 4 switch connection between two ports.` Minimal propagation delay through the switch.` Low lCC.` Zero bounce in flow-through mode.` Cont...

FSTU16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSTU16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Undershoot hardened to −2V (A and B Ports)
` 4 switch connection between two ports.
` Minimal propagation delay through the switch.
` Low lCC.
` Zero bounce in flow-through mode.
` Control inputs compatible with TTL level.
` See Application Note AN-5008 for details


Pinout

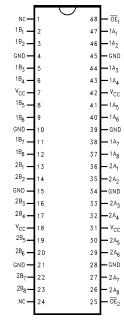

Connection Diagram


Specifications

Supply Voltage (VCC)..............−0.5V to +7.0V
DC Switch Voltage (VS) (Note 2) ........−2.0V to +7.0V
DC Input Voltage (VIN) (Note 3) ........−0.5V to +7.0V
DC Input Diode Current (lIK) VIN<0V  ......... −50mA
DC Output Current (IOUT)  ...............128mA
DC VCC/GND Current (ICC/IGND)...........±100mA
Storage Temperature Range (TSTG)..... −65 to +150


Description

The Fairchild Switch FSTU16245 provides 16-bits of highspeed CMOS TTL-compatible bus switching. The low On
Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating
additional ground bounce noise.

The FSTU16245 is organized as a 16-bit switch. There are two 8-bit switches with separate output enable inputs. When
OE is LOW, the switch is ON and Port a is connected to Port B. When OE is HIGH, the switch is OFF and a highimpedance state exists between the A and B Ports. The A and B Ports of FSTU16245 are protected against undershoot to support an extended range to 2.0V below ground. Fairchild's integrated Undershoot Hardened Circuit (UHCTM) senses undershoot at the I/O and responds by preventing voltage differentials from developing and turning the switch on. When OE is HIGH, the switch is OPEN and a high-impedance state exists between the two ports.
