FSTU16862

Features: ` Undershoot hardened to −2V (A and B Ports)` 4 switch connection between two ports` Minimal propagation delay through the switch` Low lCC` Zero bounce in flow-through mode` Control inputs compatible with TTL level` See Application Note AN-5008 for details on FSTU - Undershoot Prot...

product image

FSTU16862 Picture
See larger image
SeekIC No. : 004344878 Detail

FSTU16862: Features: ` Undershoot hardened to −2V (A and B Ports)` 4 switch connection between two ports` Minimal propagation delay through the switch` Low lCC` Zero bounce in flow-through mode` Control ...

FSTU16862 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSTU16862
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Undershoot hardened to −2V (A and B Ports)
` 4 switch connection between two ports
` Minimal propagation delay through the switch
` Low lCC
` Zero bounce in flow-through mode
` Control inputs compatible with TTL level
` See Application Note AN-5008 for details on FSTU - Undershoot Protected Fairchild Switch Family



Pinout

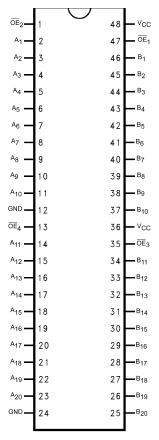

Connection Diagram


Specifications

Supply Voltage (VCC) ................−0.5V to +7.0V
DC Switch Voltage (VS) (Note 2) ..........−2.0V to +7.0V
DC Input Voltage (VIN) (Note 3) ..........−0.5V to +7.0V
DC Input Diode Current (lIK) VIN < 0V   ..........−50 mA
DC Output Current (IOUT)                ............128 mA
DC VCC/GND Current (ICC/IGND)   ............±100 mA
Storage Temperature Range (TSTG)....... −65 to +150


Description

The Fairchild Switch FSTU16862 provides 20-bits of highspeed CMOS TTL-compatible bus switching. The low OnResistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating
additional ground bounce noise.

The FSTU16862 is organized as a 20-bit bus switch. When OEX is LOW, the switch is ON and Port A is connected to Port B.
When OEX is HIGH, a high impedance state exists between the A and B Ports. The A and B Ports of FSTU16862 are protected
against undershoot to support an extended range to 2.0V below ground. Fairchild's integrated UndershootHardened Circuit (UHCTM) senses undershoot at the I/O and responds by preventing voltage differentials from
developing and turning the switch on.
