FSDM1265RB

Features: • Internal Avalanche Rugged Sense FET• Advanced Burst-Mode operation that consumes less than 1 W at 240VAC and 0.5W load• Precision Fixed Operating Frequency (66kHz)• Internal Start-up Circuit• Improved Pulse by Pulse Current Limiting• Over-Voltage Pro...

product image

FSDM1265RB Picture
See larger image
SeekIC No. : 004344363 Detail

FSDM1265RB: Features: • Internal Avalanche Rugged Sense FET• Advanced Burst-Mode operation that consumes less than 1 W at 240VAC and 0.5W load• Precision Fixed Operating Frequency (66kHz)̶...

FSDM1265RB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSDM1265RB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal Avalanche Rugged Sense FET
• Advanced Burst-Mode operation that consumes less than 1 W at 240VAC and 0.5W load
• Precision Fixed Operating Frequency (66kHz)
• Internal Start-up Circuit
• Improved Pulse by Pulse Current Limiting
• Over-Voltage Protection (OVP)
• Over-Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Under Voltage Lock Out (UVLO) with Hysteresis
• Low Operating Current (2.5mA)
• Built-in Soft Start


Application

• SMPS (Switch Mode Power Supplies) for LCD monitor and STB
•  Adapter

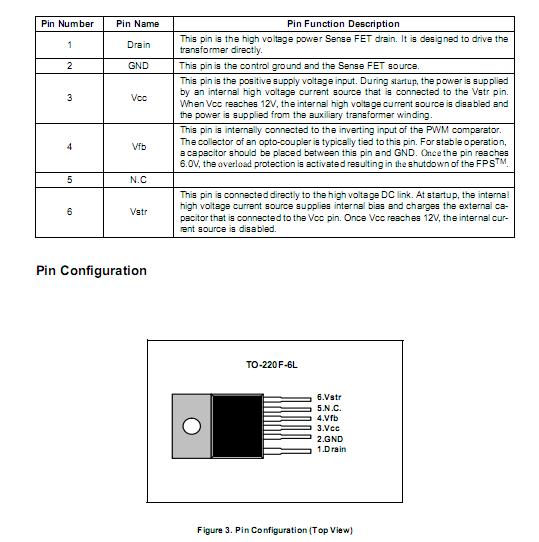

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Drain-source voltage VDSS 650 V
Vstr Max Voltage VSTR 650 V
Pulsed Drain current (Tc=25°C) (1) IDM 15.9 ADC
Continuous Drain Current(Tc=25°C) ID 5.3 A
Continuous Drain Current(Tc=100°C) 3.4 A
Supply voltage) VCC 20 V
Input voltage range VFB -0.3 to VCC V
Total Power Dissipation
(Tc=25°C with Infinite Heat Sink) 		PD 50 W
75
(I2-PAK-6L)
Operating Junction Temperature TJ
 Internally limited °C
Operating ambient temperature TSTG -25 to +85 °C
Storage temperature range TA -55 to +150 °C
ESD Capability, HBM Model (All pins
excepts for Vstr and Vfb)		 - 2.0
(GND-Vstr/Vfb=1.5kV)		 kV
ESD Capability, Machine Model (All pins
excepts for Vstr and Vfb)		 - 300
(GND-Vstr/Vfb=225V)		 V



Description

The FSDM1265RB is an integrated Pulse-Width Modulator (PWM) and a SenseFET which is specifically designed for  high performance offline SMPS with minimal external  components. FSDM1265RB is an integrated high-voltage power  switching regulator which combines a rugged avalanche  Sense FET with a current mode PWM control block. The  PWM controller includes integrated fixed frequency oscillator, under-voltage lockout, leading edge blanking (LEB), optimized  gate driver, internal soft-start, and precise current sources that  are temperature compensated for loop compensation and self  protection circuitry. Compared with discrete MOSFET and  PWM controller solution, it can reduce total cost, component  ount, size, and weight, while simultaneously increasing  efficiency, productivity, and system reliability. FSDM1265RB is a  basic platform which is well suited for cost effective designs  of flyback converters.
