FSDM0265RNB

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Maximum Operating Temperature : + 85 C
Number of Outputs : 1
Mounting Style : Through Hole
Supply Current (Max) : 3 mA
Package / Case : PDIP-8
On Resistance (Max) : 3.6 Ohms


Features:

• Internal Avalanche Rugged Sense FET
• Consumes only 0.65W at 240VAC & 0.3W load with Advanced Burst-Mode Operation
• Frequency Modulation for EMI Reduction
• Precision Fixed Operating Frequency
• Internal Start-up Circuit
• Pulse-by-Pulse Current Limiting
• Over Voltage Protection (OVP)
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Under Voltage Lockout (UVLO)
• Low Operating Current (3mA)
• Adjustable Peak Current Limit
• Built-in Soft Start


Application

• SMPS for VCR, SVR, STB, DVD & DVCD Player
• SMPS for Printer, Facsimile & Scanner
• Adapter for Camcorder

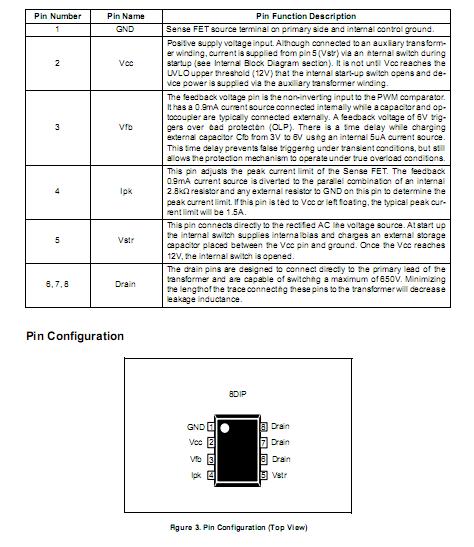

Pinout




Specifications

Parameter	Symbol	Value	Unit
Drain Pin Voltage	VDRAIN	650	V
Vstr Pin Voltage	VSTR	650	V
Drain Current Pulsed(1)	IDM	8.0	A
Single Pulsed Avalanche Energy(2)	EAS	68	mJ
Supply Voltage	VCC	20	V
Feedback Voltage Range	VFB	-0.3 to VCC	V
Total Power Dissipation	PD	1.56	W
Operating Junction Temperature	TJ	Internally limited	°C
Operating Ambient Temperature	TA	-25 to +85	°C
Storage Temperature	TSTG	-55 to +150	°C

Description

The FSDM0265RNB consists of an integrated Pulse Width Modulator (PWM) and Sense FET, and is specifically designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This devices is an integrated high voltage power switching regulator which combines an avalanche rugged Sense FET with a current mode PWM control block. The integrated PWM controller features include: a fixed oscillator with frequency modulation for reduced EMI, Under Voltage Lock Out (UVLO) protection, Leading Edge Blanking (LEB), an optimized gate turnon/turn off driver, Thermal Shut Down (TSD) protection and temperature compensated precision current sources for loop compensation and fault protection circuitry. The FSDM0265RNB offers better performance in Soft Start than FSDM0265RN. When compared to a discrete MOSFET and controller or RCC switching converter solution, the FSDM0265RNB reduces total component count, design size, weight while increasing efficiency, productivityand system reliability. This device provides a basic platform that is well suited for the design of cost-effective flyback converters.

Parameters:

Technical/Catalog Information	FSDM0265RNB
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	-
Package / Case	8-DIP
Power (Watts)	27W
Voltage - Input	9 ~ 20 V
Voltage - Output	650V
Frequency Range	61 ~ 73kHz
Operating Temperature	25°C ~ 85°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSDM0265RNB FSDM0265RNB
