FSDM0465RB

Features: • Internal Avalanche Rugged SenseFET• Advanced Burst-Mode Operation Consumes Under One W at 240VAC & 0.5W Load• Precision Fixed Operating Frequency (66kHz)• Internal Start-up Circuit• Improved Pulse by Pulse Current Limiting• Over Voltage Protectio...

product image

FSDM0465RB Picture
See larger image
SeekIC No. : 004344355 Detail

FSDM0465RB: Features: • Internal Avalanche Rugged SenseFET• Advanced Burst-Mode Operation Consumes Under One W at 240VAC & 0.5W Load• Precision Fixed Operating Frequency (66kHz)• Int...

FSDM0465RB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FSDM0465RB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal Avalanche Rugged SenseFET
• Advanced Burst-Mode Operation Consumes Under One W at 240VAC & 0.5W Load
• Precision Fixed Operating Frequency (66kHz)
• Internal Start-up Circuit
• Improved Pulse by Pulse Current Limiting
• Over Voltage Protection (OVP) : Auto-Restart
• Over Load Protection (OLP): Auto-Restart
• Internal Thermal Shutdown (TSD) : Auto-Restart
• Under Voltage Lock Out (UVLO) with Hysteresis
• Low Operating Current (2.5mA)
• Built-in Soft Start


Application

• SMPS for LCD monitor and STB
•Adapter

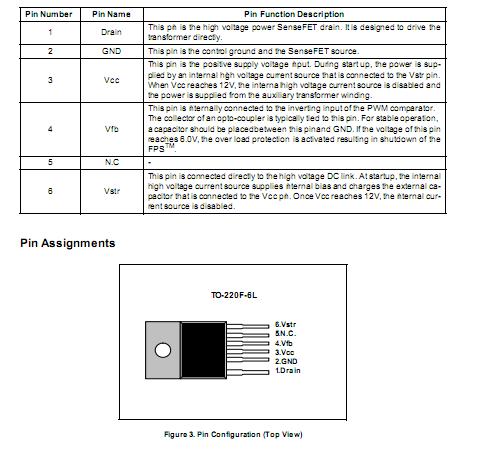

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Drain-source Voltage VDSS 650 V
Vstr Max Voltage VSTR 650 V
Pulsed Drain Current (Tc=25°C)(1) IDM 9.6 A
Continuous Drain Current (Tc=25°C) (2) ID 2.2 A (rms)
Continuous Drain Current (Tc=100°C) (2) 1.4 A (rms)
Continuous Drain Current*(TDL=25°C) (3) ID* 4 A (rms)
Single Pulsed Avalanche Energy (4) EAS - mJ
Supply Voltage VCC 20 V
Input Voltage Range VFB -0.3 to VCC V
Total Power Dissipation (Tc=25°C) (2) PD 33 W
Operating Junction Temperature TJ Internally limited °C
Operating Ambient Temperature TA -25 to +85 °C
Storage Temperature Range TSTG -55 to +150 °C
ESD Capability, HBM Model (All pins
except Vstr and Vfb)		 -                2.0
(GND-Vstr/Vfb=1.5kV)		 kV
ESD Capability, Machine Model (All pins
except Vstr and Vfb)		 -                300
(GND-Vstr/Vfb=225V)		 V



Description

The FSDM0465RB is an integrated Pulse Width Modulator (PWM) and SenseFET specifically designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components. FSDM0465RB is an integrated high voltage power switching regulator which combines a rugged avalanche, SenseFET with a current mode PWM control block. The PWM controller includes integrated fixed frequency oscillator, under voltage lockout, leading edge blanking (LEB), optimized gate driver, internal soft start, temperature compensated precise current sources for a loop compensation and self protection circuitry. Compared with a discrete MOSFET and PWM controller solution, the PWM/FSDMRB can reduce total cost, component count, size and weigh, while simultaneously increasing efficiency, productivity, and system reliability. FSDM0465RB provides a basic platform well suited for cost-effective designs of flyback converters.
