FMS9874

Features: * 3-channels* 108 Ms/s conversion rate* Programmable Clamps* 500ps PLL clock jitter* Adjustable Gain and offset* Internal Reference Voltage* I2C/SMBus compatible Serial Port* 100-pin packageApplication* Flat panel displays and projectors* RGB Graphics ProcessingPinoutSpecifications ...

product image

FMS9874 Picture
See larger image
SeekIC No. : 004342879 Detail

FMS9874: Features: * 3-channels* 108 Ms/s conversion rate* Programmable Clamps* 500ps PLL clock jitter* Adjustable Gain and offset* Internal Reference Voltage* I2C/SMBus compatible Serial Port* 100-pin packa...

FMS9874 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FMS9874
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 3-channels
* 108 Ms/s conversion rate
* Programmable Clamps
* 500ps PLL clock jitter
* Adjustable Gain and offset
* Internal Reference Voltage
* I2 C/SMBus compatible Serial Port
* 100-pin package


Application

* Flat panel displays and projectors
* RGB Graphics Processing


Pinout

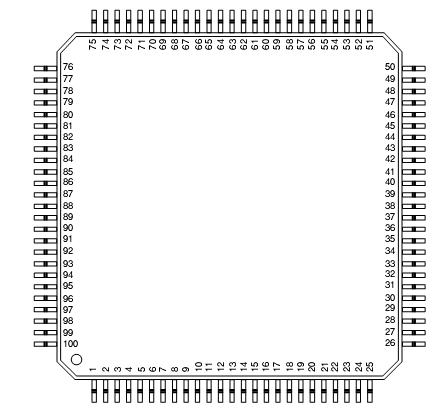

Connection Diagram


Specifications


Parameter Min Typ Max Unit
Power Supply Voltages
VCC (Measured to GND)
 -0.5   4 V
Digital Inputs

Applied voltage (Measured to GND)2		 -0.3   VDDA V

Forced current3, 4 		-5.0   5.0 mA
Analog Inputs
Applied Voltage (Measured to GND)2 -0.5   VDDA V
Forced current3, 4 -10.0   10.0 mA
Digital Outputs

Applied voltage (Measured to GND)2		 -0.5     V

Forced current3, 4 		-6.0   6.0 mA

Forced current3, 4 		-8.0   8.0 mA
Short circuit duration (single output in HIGH state to ground)     1 second
Temperature
Junction     150 °C
Lead Soldering (10 seconds)     300 °C
Vapor Phase Soldering (1 minute)     220 °C
Storage -65   150 °C

Electrostatic Discharge5		     ±150 V



Description

As a fully integrated analog interface, the FMS9874 can directly digitize RGB graphics with resolutions up to 1024 x 768/85Hz and 1280 x 1024/60Hz; or using alternate pixel sampling, 1600 x 1200/75Hz. ADC sampling clock can be derived from either an external source or incoming horizontal sync signal using the internal PLL. Output data is 24-bit RGB. Setup and control is via registers, accessible through an SMBus/I2 C com-patible serial port.

Input amplitude range of FMS9874 is 5001000mV with either DC or AC coupling. Lower reference of AC coupled inputs is estab-lished with input clamps that are either internally generated or externally provided.

Common to the three channels are clamp pulses, a bandgap reference voltage and clocks derived from a PLL or an external source. Digital data levels are 2.53.3 volt CMOS compliant.

Power of FMS9874 can be derived from a single +3.3 Volt power supply. Package is a 100-lead MQFP. Performance specifications are guaranteed over 0°C to 70°C range.
