FDG6335N

MOSFET FDG6335N

product image

FDG6335N Picture
See larger image
SeekIC No. : 00147833 Detail

FDG6335N: MOSFET FDG6335N

FDG6335N Data Sheet

floor Price/Ceiling Price

US $ .17~.29 / Piece | Get Latest Price
Part Number:
FDG6335N
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.29
  • $.25
  • $.21
  • $.17
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 0.7 A
Resistance Drain-Source RDS (on) : 0.3 Ohms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SC-70-6 Packaging : Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Configuration : Dual
Gate-Source Breakdown Voltage : +/- 12 V
Package / Case : SC-70-6
Resistance Drain-Source RDS (on) : 0.3 Ohms
Continuous Drain Current : 0.7 A


Features:

· 0.7 A, 20 V. RDS(ON) = 300 mW @ VGS = 4.5 V RDS(ON) = 400 mW @ VGS = 2.5 V
· Low gate charge (1.1 nC typical)
· High performance trench technology for extremely low RDS(ON)
· Compact industry standard SC70-6 surface mount package


Application

· DC/DC converter
· Power management
· Loadswitch

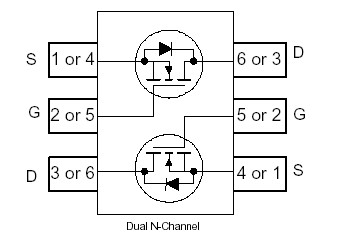

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Units
VDSS
VGSS
 Drain-Source Voltage
Gate-Source Voltage
20
± 12
0.7
2.1
0.3
55 to +150
V
V
A

W
°C
ID
 Drain Current Continuous
Pulsed		 (Note 1)
PD
 Power Dissipation for Single Operation (Note 1)
TJ,TSTG Operating and Storage Junction Temperature Range



Description

This FDG6335N N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized use in small switching regulators, providing an extremely low RDS(ON) and gate charge (QG) in a small package.




Parameters:

Technical/Catalog InformationFDG6335N
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C700mA
Rds On (Max) @ Id, Vgs300 mOhm @ 700mA, 4.5V
Input Capacitance (Ciss) @ Vds 113pF @ 10V
Power - Max300mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs1.4nC @ 4.5V
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDG6335N
FDG6335N
