FDG6324L

Type :
Rise Time :
Fall Time :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Reel
Supply Voltage - Min : 3 V
Product : MOSFET Gate Drivers
Maximum Operating Temperature : + 150 C
Supply Voltage - Max : 20 V
Maximum Power Dissipation : 300 mW
Package / Case : SC-70-6


Features:

`V<sub>DROP</sub>=0.2V @ V<sub>IN</sub>=12V, I<sub>L</sub>=0.36A. R<sub>(ON)</sub> = 0.55. V<sub>DROP</sub>=0.2V @ V<sub>IN</sub>=5V, I<sub>L</sub>=0.27A. R<sub>(ON)</sub> = 0.75.
`Very small package outline (SC70-6).
`Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human Body Model).
`High density cell design for extremely low on-resistance.

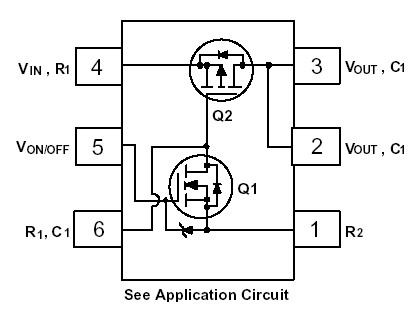

Pinout






Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDG6324L	Full Production	RoHS Compliant	$0.192	SC70-6	6	TAPE REEL		Line 1: &Y (Binary Calendar Year Coding) Line 2: .24

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDG6324L is available. Click here for more information .

Symbol	Parameter		FDG6324L	Units
VDSS VGSS	Drain-Source Voltage Gate-Source Voltage		3 - 20 2.5 - 8 0.6 1.8 0.3 -55 to 150 6	V V A W °C kV
ID	Drain Current Continuous Pulsed	(Note 1) (Note 1 & 3)
PD	Power Dissipation for Single Operation	(Note 2)
TJ,TSTG ESD	Operating and Storage Junction Temperature Range Electrostatic Discharge Rating MIL-STD-883D Human Body Model (100pf/1500OHM)

THERMAL CHARACTERISTICS

RJA

Thermal Resistance, Junction-to-Ambient

415

°C/W

Description

This FDG6324L device is intended to be configured as a load switch and is particularly suited for compact computer peripheral switching applications where 3V to 20V input and 0.6A output current capability are needed. This device features a small N-Channel MOSFET (Q1) together with a large P-Channel Power MOSFET (Q2) in a single SC70-6 package.

Parameters:

Technical/Catalog Information	FDG6324L
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	3 ~ 20 V
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Packaging	Tape & Reel (TR)
Current Limit	600mA
Internal Switch(s)	Yes
Operating Temperature	-55°C ~ 150°C
Rds (On)	550 mOhm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDG6324L FDG6324L
