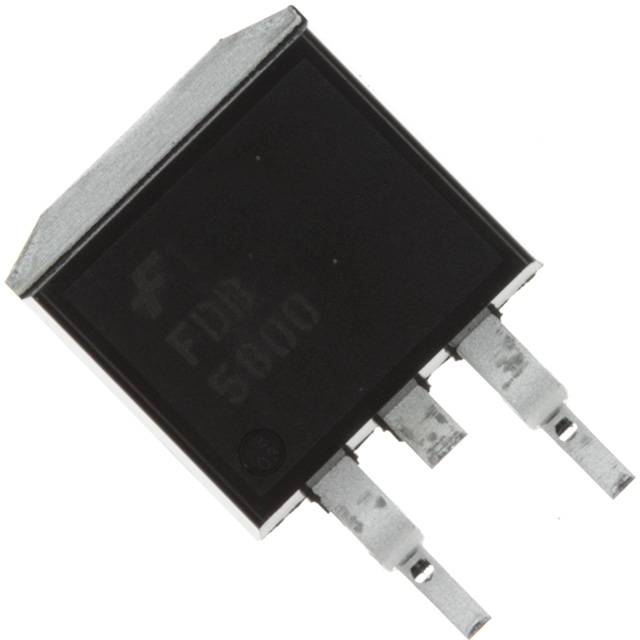

See larger image

SeekIC No. : 00164736 Detail

FDB5800_F085: MOSFET 60V N-Ch PowerTrench

FDB5800_F085 Data Sheet

Get Latest Price

Part Number:: FDB5800_F085
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FDB52N20 evaluate
Features: * 52A, 200V, RDS(on) = 0.049@VGS = 10 V* Low gate charge ( typical 49 nC)* Low Crss ( ty...
FDB52N20TM evaluate
US $.84 - 1.3 / Piece

MOSFET 200V N-Ch MOSFET
FDB5645 evaluate
MOSFET 60V N-Channel Power Trench

Product Details

Quick Details

Transistor Polarity :	N-Channel	Drain-Source Breakdown Voltage :	60 V
Gate-Source Breakdown Voltage :	+/- 20 V	Continuous Drain Current :	80 A
Resistance Drain-Source RDS (on) :	0.0055 Ohms at 10 V	Configuration :	Single
Maximum Operating Temperature :	+ 175 C	Mounting Style :	SMD/SMT
Package / Case :	D2PAK	Packaging :	Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Maximum Operating Temperature : + 175 C
Mounting Style : SMD/SMT
Packaging : Reel
Package / Case : D2PAK
Continuous Drain Current : 80 A
Drain-Source Breakdown Voltage : 60 V
Resistance Drain-Source RDS (on) : 0.0055 Ohms at 10 V

Parameters:

Technical/Catalog Information	FDB5800_F085
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	80A
Rds On (Max) @ Id, Vgs	6 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds	6625pF @ 15V
Power - Max	242W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	135nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDB5800_F085 FDB5800_F085
