Product Details

Description



Features:

· PC Power Supply Output Monitor Circuitry
· Few External Components
·Over Voltage Protection for 3.3V, 5V and 12V(Vcc) Outputs
· Under Voltage Protection for 3.3V, 5V and 12V(Vcc) Outputs with Delay Time
· Fault Protection Output with Open Drain Output
· Open Drain Power Good Output
· 300ms Power Good Delay
· 38msPSON On/Off Debounce
· 73us Debounce
·2.3ms PSON to FPO Turn Off Delay
·Latch Function Controlled byPSON and Protection Inputs




Application

· PC Power Supply




Pinout

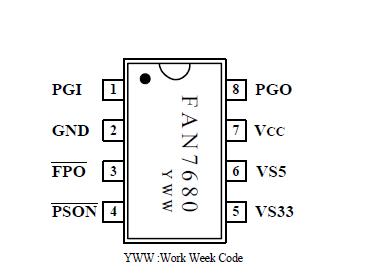

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing
FAN7680N Full Production RoHS Compliant $0.56 DIP 8 RAIL
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples


Parameter Symbol Value Unit
Supply Voltage VCC 16 V
Supply Current ICC 1 mA
Input Voltage VPSON, VS5 8 V
VS33, VPGI
Output Voltage VPGO 8 V
VFPO 16
Operating Temperature TO -40 ~ +125 °C
Storage Temperature TS -65 ~ +150 °C
Power Dissipation PD 1 W





Description

The FAN7680 is a complete output supervisory circuitry intended for use in the secondary side of a switched mode power supply. It provides over voltage protection (OVP), undervoltage protection (UVP), fault protection output (/FPO), remote On/Off (/PSON), latch, internal delay circuits and power good signal generator to monitor and control the output of the switching power supply system. As for output control, power good output (PGO) and fault protection output (/FPO) are included. It directly senses all the output rails for OVP and UVP without external dividers. The FAN7680 offers a simple and cost effective solution with minimum number of external components and greatly reduces PCB board space for power supply.
