FAN7000D

Common Mode Rejection Ratio (Min) :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Output Power : 40 mW
Output Type : 2-Channel Stereo
Product : Class-AB
Operating Supply Voltage : 3 V
Available Set Gain : 32 dB
Maximum Operating Temperature : + 75 C
THD plus Noise : 0.5 %
Maximum Power Dissipation : 300 mW
Package / Case : SSOP-10


Features:

• Low Quiescent Current
• High Power Supply Ripple Rejection
• Low Voltage Operation
• A few of External Part Required
• Built in Power Save Switch & Mute Switch


Application

• Portable Compact Disk Player (DISCMAN)
• Portable Mini Disk Player (MD)
• Disc-Man
• MP3 Player
• CD-ROM
• Other Potable Compact Disk Media
   Fan Motor Drive

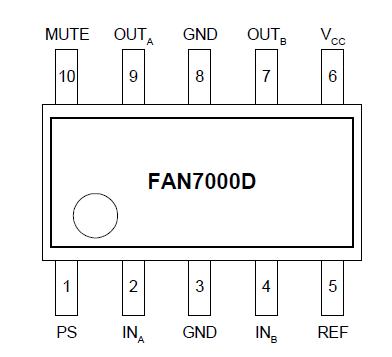

Pinout




Description

The FAN7000D is a monolithic integrated circuit and suitable dual amplifier for low power.
