FAN7585

Features: · Complete PWM Control and House Keeping Circuitry· Few External Components· Precision Voltage Reference Trimmed to 2%· Dual Output for Push-Pull Operation· Each Output TR for 200mA Sink Current· Variable Duty Cycle by Dead Time Control· Soft Start Capability by Using Dead Time Control· ...

product image

FAN7585 Picture
See larger image
SeekIC No. : 004340497 Detail

FAN7585: Features: · Complete PWM Control and House Keeping Circuitry· Few External Components· Precision Voltage Reference Trimmed to 2%· Dual Output for Push-Pull Operation· Each Output TR for 200mA Sink C...

FAN7585 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN7585
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Complete PWM Control and House Keeping Circuitry
· Few External Components
· Precision Voltage Reference Trimmed to 2%
· Dual Output for Push-Pull Operation
· Each Output TR for 200mA Sink Current
· Variable Duty Cycle by Dead Time Control
· Soft Start Capability by Using Dead Time Control
· Double Pulse Suppression Logic
· Over Voltage Protection for 3.3V/5V/12V
· Under Voltage Protection for 3.3V/5V/12V
· Over Current Protection for 3.3V/5V/12V
· One More External Input for Various Protection (PT)
· Remote On/Off Control Function (PS-ON)
· Latch Function Controlled by Remote and Protection Input
· Power Good Signal Generator with Hysteresis


Application

· PC Power Supply


Pinout

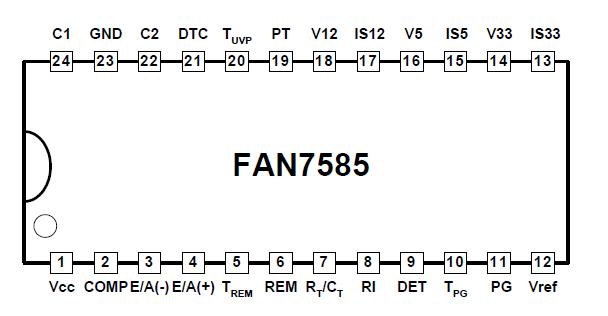

Connection Diagram


Specifications

Characteristics Symbol Value Unit
Supply Voltage VCC 40 V
Collector Output Voltage VC1,VC2 20 V
Collector Output Current IC1,IC2 200 mA
Power Dissipation (FAN7585) PD 1.5 W
Operating Temperature Range TOPR -25 to 85 °C
Storage Temperature Range TSTG -65 to 150 °C



Description

The FAN7585 is a fixed frequency improved performance pulse width modulation control circuit with complete housekeeping circuitry for use in the secondary side of SMPS (Switched Mode Power Supply). It contains various functions, which are overvoltage protection, undervoltage protection, over current protection, remote on/off control, power good signal generator, etc.
