Features: • Constant Voltage & Constant Current Control• Wide Operating Range of 2.5V ~ 16V• Low-Side Source Return Current Sensing• Externally Adjustable Charging Current Control• Charging Current Monitoring• Precision LDO Regulator Drive Ouptut (Adj) (Only...
FAN7563: Features: • Constant Voltage & Constant Current Control• Wide Operating Range of 2.5V ~ 16V• Low-Side Source Return Current Sensing• Externally Adjustable Charging Curren...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | Value | Unit |
Supply Voltage | VCC | 2.5 ~ 16 | V |
Ldodrv Sink Current | Idrv | 2 | mA |
Output Sink Current | IO | 20 | mA |
Power Dissipation | Pd | 0.75 | W |
Operating Temperature Range | Topr | -25 ~ 85 | °C |
Storage Temperature Range | Tstg | -65 ~ 150 | °C |

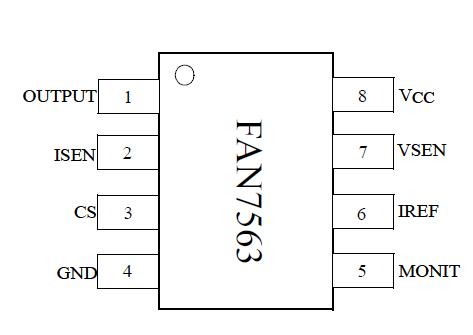

The FAN7563/FAN7564 is designed for Lithium-ion battery charger. This controls charging current and voltage of Lithium - ion battery as constant current and constant voltage control IC and can be used for stand alone charger (FAN7563) and micom interface charger(FAN7564). In addition LDO regulator driving output which is integrated within FAN7564 enables to offer accurate reference voltage to power supply of micro controller, therefore, it features increasing stability and efficiency of charger set as well as minimizing external components of the set. Additionally, FAN7563/FAN7564 provide the protection functions like error flag, short circuit protection(LDO), and charging current control disable.
