FAN2514

Features: ·Ultra Low Power Consumption·Enable optimized for CDMA time phases·200 mV dropout voltage at 200 mA·75 PAA ground current at 200 m·Enable/Shutdown Control·SOT23-5 package·Thermal limiting·300 mA peak currentApplication·Cellular Phones and accessories·PDAs·Portable cameras and video recor...

product image

FAN2514 Picture
See larger image
SeekIC No. : 004340336 Detail

FAN2514: Features: ·Ultra Low Power Consumption·Enable optimized for CDMA time phases·200 mV dropout voltage at 200 mA·75 PAA ground current at 200 m·Enable/Shutdown Control·SOT23-5 package·Thermal limiting·...

FAN2514 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN2514
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Ultra Low Power Consumption
·Enable optimized for CDMA time phases
·200 mV dropout voltage at 200 mA
·75 PAA ground current at 200 m
·Enable/Shutdown Control
·SOT23-5 package
·Thermal limiting
·300 mA peak current




Application

·Cellular Phones and accessories
·PDAs
·Portable cameras and video recorders
·Laptop, notebook and palmtop computers




Pinout

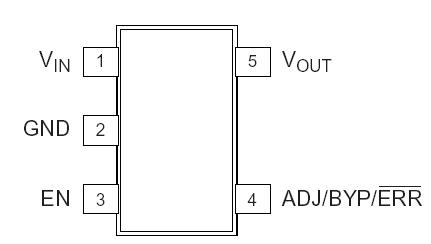

Connection Diagram




Specifications

Parameter Min Typ Max Unit
Power Supply Voltages
VIN (Measured to GND
 0 7 V
Enable Input (EN)

Applied voltage (Measured to GND)2		 0 7 V
ERR Output
Applied voltage (Measured to GND)2 0 7 V
Power

Dissipation3		 Internally limited
Temperature
Junction -65 150
Lead Soldering (5 seconds) 260
Storage -65 150

Electrostatic Discharge4		 4 kV
Notes:
1.Functional operation under any of these conditions is NOT implied. Performance and reliability are guaranteed only if Operating Conditions are not exceeded.
2.Applied voltage must be current limited to specified range.
3.Based upon thermally limited junction temperature:PD=TJ(max)-TA/JA
4.Human Body Model is 4kV minimum using Mil Std. 883E, method 3015.7. Machine Model is 400V minimum using JEDEC method A115-A.



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN2514S25X Lifetime Buy RoHS Compliant N/A SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGE&C Line 3: &.&O&E&V
FAN2514S26X Lifetime Buy RoHS Compliant N/A SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGG&C Line 3: &.&O&E&V
FAN2514S27X Lifetime Buy RoHS Compliant N/A SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGJ&C Line 3: &.&O&E&V
FAN2514S285X Lifetime Buy RoHS Compliant N/A SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGN&C Line 3: &.&O&E&V
FAN2514S28X Lifetime Buy RoHS Compliant N/A SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGM&C Line 3: &.&O&E&V
FAN2514S30X Full Production RoHS Compliant $0.444 SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGW&C Line 3: &.&O&E&V
FAN2514SX Full Production RoHS Compliant $0.444 SOT-23 5 TAPE REEL MA05A Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGA&C Line 3: &.&O&E&V
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN2514 is available. Click here for more information .





Description

The FAN2514/15 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM, TDMA, and CDMA cellular handsets, Laptop and Notebook portable computers and other portable devices. Features include extremely low power consumption and low shutdown current, low dropout voltage, exceptional loop stability able to accommodate a wide variety of external capacitors, and the compact SOT23-5 surface-mount package. In addition, the FAN2514/15 family offer the fast power-cycle time required in CDMA handset applications. The products offer signi?cant improvements over older BiCMOS designs and are pin-compatible with many popular devices. The output is thermally protected against overload.

The FAN2514 and FAN2515 devices are distinguished by the assignment of pin 4:

FAN2514: pin 4 (R)C ADJ, allowing the user to adjust the output voltage over a wide range using an external voltage divider.

FAN2514-XX: pin 4 (R)C BYP, to which a bypass capacitor may be connected for optimal noise performance. Output voltage is ?xed, indicated by the suf?x XX. FAN2515-XX: pin 4 (R)C ER , a ?ag which indicates that the output voltage has dropped below the speci?ed minimum due to a fault condition.

The standard ?xed output voltages available are 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V, and 3.3V. Custom output voltage are also available: please contact your local Fairchild Sales Of?ce for information.
