FAN2002

Features: 96% Efficiency, Synchronous OperationAdjustable Output Voltage Options from 0.8V to VIN2.5V to 5.5V Input Voltage RangeUp to 1A Output CurrentFixed Frequency 1.3MHz PWM OperationHigh Efficiency Power Save Mode100% Duty Cycle Low Dropout OperationSoft StartOutput Over-Voltage ProtectionDy...

product image

FAN2002 Picture
See larger image
SeekIC No. : 004340315 Detail

FAN2002: Features: 96% Efficiency, Synchronous OperationAdjustable Output Voltage Options from 0.8V to VIN2.5V to 5.5V Input Voltage RangeUp to 1A Output CurrentFixed Frequency 1.3MHz PWM OperationHigh Effic...

FAN2002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN2002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

96% Efficiency, Synchronous Operation
Adjustable Output Voltage Options from 0.8V to VIN
2.5V to 5.5V Input Voltage Range
Up to 1A Output Current
Fixed Frequency 1.3MHz PWM Operation
High Efficiency Power Save Mode
100% Duty Cycle Low Dropout Operation
Soft Start
Output Over-Voltage Protection
Dynamic Output Voltage Positioning
25µA Quiescent Current
Thermal Shutdown and Short Circuit Protection
Pb-Free 3x3mm 6-Lead MLP Package




Application

Pocket PCs, PDAs
Cell Phones
Battery-Powered Portable Devices
Digital Cameras
Hard Disk Drives
Set-Top-Boxes
Point-of-Load Power
Notebook Computers
Communications Equipment

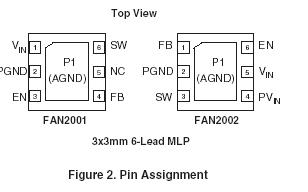

Pinout

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN2002MPX Full Production Green $0.76 MLP 6 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 2002 Line 3: C
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN2002 is available. Click here for more information .


Parameter Min Max Unit
VIN, PVIN
Voltage On Any Other Pin
Lead Soldering Temperature (10 seconds)
Junction Temperature
Storage Temperature
Thermal Resistance-Junction to Tab(JC),3x3mm 6-lead MLP (Note 2)
-0.3
-0.3


-65
7
VIN
260
150
150
8
V
V
°C
°C
°C
°C/W

kV
Electrostatic Discharge Protection (ESD) Level (Note 3) HBM
CDM
4
1





Description

Designed for use in battery-powered applications, the FAN2001/FAN2002 is a high-efficiency, low-noise synchronous PWM current mode and Pulse Skip (Power Save) mode DC-DC converter. It can provide up to 1A of output current over a wide input range from 2.5V to 5.5V. The output voltage can be externally adjusted over a wide range of 0.8V to 5.5V by means of an external voltage divider.

At moderate and light loads, pulse skipping modulation is used. Dynamic voltage positioning is applied, and the output voltage is shifted 0.8% above nominal value for increased headroom during load transients. At higher loads the system automatically switches over to current mode PWM control, operating at 1.3 MHz. A current mode control loop with fast transient response ensures excellent line and load regulation. To achieve high efficiency and ensure long battery life, the quiescent current is reduced to 25?A in Power Save mode, and the supply current drops below 1µA in shut-down mode. The FAN2001/FAN2002 is available in 3x3mm 6-lead MLP package.
