FAN2012

Features: 95% Efficiency, Synchronous OperationAdjustable Output Voltage from 0.8V to VIN4.5V to 5.5V Input Voltage RangeUp to 1.5A Output CurrentFixed Frequency 1.3 MHz PWM Operation100% Duty Cycle Low Dropout OperationSoft StartExcellent Load Transient Response3x3mm 6-lead MLP PackageAppli...

product image

FAN2012 Picture
See larger image
SeekIC No. : 004340317 Detail

FAN2012: Features: 95% Efficiency, Synchronous OperationAdjustable Output Voltage from 0.8V to VIN4.5V to 5.5V Input Voltage RangeUp to 1.5A Output CurrentFixed Frequency 1.3 MHz PWM Operation100% Duty...

FAN2012 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN2012
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

95% Efficiency, Synchronous Operation
Adjustable Output Voltage from 0.8V to VIN
4.5V to 5.5V Input Voltage Range
Up to 1.5A Output Current
Fixed Frequency 1.3 MHz PWM Operation
100% Duty Cycle Low Dropout Operation
Soft Start
Excellent Load Transient Response
3x3mm 6-lead MLP Package




Application

Hard Disk Drive
Set Top Box
Point of Load Power
Notebook Computers
Communications Equipment

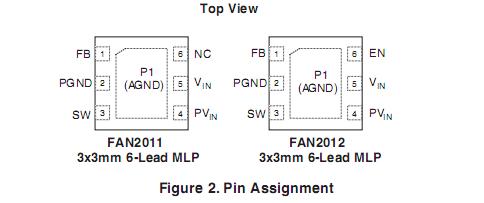

Pinout

Connection Diagram




Specifications

Parameter Min. Max. Units
VIN
-0.3 7 V
PVIN and any other pin -0.3 VIN V
Thermal Resistance-Junction to Tab (JC), 3mmx3mm 6-lead MLP (Note 2) 8 °C/W
Lead Soldering Temperature (10 seconds) 260 °C
Storage Temperature -65 150 °C
Junction Temperature) -40 150 °C
Electrostatic Discharge (ESD) Protection Level (Note 3) ) HBM 4 kV
CDM 2




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN2012EMPX Full Production Green $0.74 MLP 6 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 2012E Line 3: C
FAN2012MPX Full Production Green $0.63 MLP 6 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 2012 Line 3: C
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN2012 is available. Click here for more information .





Description

The FAN2011/FAN2012 is a high-efficiency, low-noise synchro-nous PWM current mode DC-DC converter, designed for low voltage applications. It provides up to 1.5A continuous load cur- rent from the 4.5V to 5.5V input. The output voltage is adjust- able over a wide range of 0.8V to VIN by means of an external voltage divider.

The FAN2011 is always on, while the FAN2012 has an "Enable Input," and the device can be put in the shutdown mode, in which the ground current falls below 1µA.

A current mode control loop with a fast transient response ensures excellent line and load regulation. The fixed 1.3MHz switching frequency enables the user to choose a small, inex- pensive external inductor and capacitor. Filtering is also easily accomplished with very small components.
