Features:

•F2MC-8L family CPU core
•Low-voltage operation
•Low current consumption (allowing for dual clock)
•Minimum execution time : 0.95 ms at 4.2 MHz
•21-bit timebase counter
•I/O ports : Max. 36 ports
•External interrupts : 3 channels
•External interrupts (wake-up function) : 8 channels (only in the MB89120A series)
•8-bit serial I/O : 1 channel
•8-/16-bit timer/counter : 1 channel
•Built-in remote-control transmitting frequency generator (only in the MB89120A series)
•Low-power consumption modes (stop mode, sleep mode, watch mode)
•Package : QFP-48
•CMOS technology




Pinout

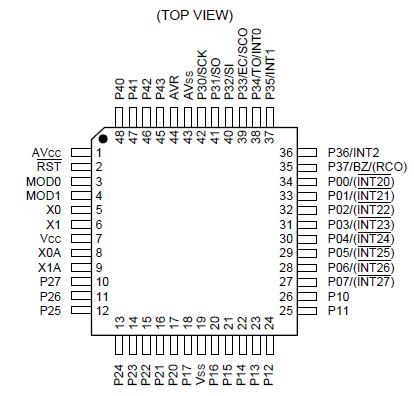

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC
AVR		 VSS - 0.3 VSS + 7.2 V Use VCC, AVCC , and AVR
set to the same voltage.
Program voltage VPP VSS - 0.6 VSS + 13.0 V MOD1 pin on the
MB89P131/P133A/P135A
Input voltage VI VSS - 0.3 VCC + 0.3 V
Output voltage VO VSS - 0.3 VCC + 0.3 V
"L" level maximum output current IOL _ 10 mA
"L" level average output current IOLAV _ 4 mA Avarage value (operating
current ´ operating rate)
"L" level total maximum output current SIOL _ 100 mA
"L" level total average output current SIOLAV _ 20 mA Avarage value (operating
current ´ operating rate)
"H" level maximum output current IOH _ -10 mA
"H" level average output current IOHAV _ -2 mA Avarage value (operating
current ´ operating rate)
"H" level total maximum output current IOH _ -30 mA
"H" level total average output current IOHAV _ -10 mA Avarage value (operating
current ´ operating rate)
Power consumption PD _ 200 mW
Operating temperature TA -40 +85
Storage temperature Tstg -55 +150



Description

The MB89120 series is a line of single-chip microcontrollers containing a compact instruction set and a great variety of peripheral functions such as a timer, serial interface, and external interrupt. The MB89120A series is an extended variant of the MB89120, with a remote control transmission function and wake-up interrupt channels.
