EP7212

Features: ` ARM720T processor- ARM7TDMI CPU- 8 K-bytes of four-way set-associative cache- MMU with 64-entry TLB (transition look-aside buffer)- Write Buffer- Windows CE enabled- Thumb code support enabled` Dynamically programmable clock speeds of 18, 36, 49, and 74 MHz at 2.5 V` Performanc...

product image

EP7212 Picture
See larger image
SeekIC No. : 004337079 Detail

EP7212: Features: ` ARM720T processor- ARM7TDMI CPU- 8 K-bytes of four-way set-associative cache- MMU with 64-entry TLB (transition look-aside buffer)- Write Buffer- Windows CE enabled- Thumb code s...

EP7212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EP7212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ARM720T processor
- ARM7TDMI CPU
- 8 K-bytes of four-way set-associative cache
- MMU with 64-entry TLB (transition look-aside buffer)
- Write Buffer
- Windows CE enabled
- Thumb code support enabled
` Dynamically programmable clock speeds of 18, 36, 49, and 74 MHz at 2.5 V
` Performance matching 100-MHz Intel Pentium-based PC
` Ultra low power
- Designed for applications that require long battery life while using standard AA/AAA batteries or rechargeable cells
- Typical Power Numbers
` 90 mW at 74 MHz in the Operating State
` 30 mW at 18 MHz in the Operating State
` 10 mW in the Idle State (clock to the CPU stopped, everything else running)
` <1 mW in the Standby State (realtime clock 'on', everything else stopped)
` Advanced audio decoder / decompression capability
- Allows for support of multiple audio decompression algorithms
- Supports MPEG 1, 2, & 2.5 layer 3 audio decoding, including ISO compliant MPEG 1 & 2 layer 3 support for all standard sample rates and bit rates
- Supports bit streams with adaptive bit rates
- DAI (Digital Audio Interface) providing glueless interface to low-power DACs, ADCs, and Codecs
` LCD controller
- Interfaces directly to a single-scan panel monochrome LCD
- Panel width size is programmable from 32 to 1024 pixels in 16-pixel increments
- Video frame buffer size programmable up to 128 kbytes
- Bits per pixel of 1, 2, or 4 bits
` DRAM controller
- Supports both 16- and 32-bit-wide DRAMs
- EDO support (Fast Page Mode support for 13 MHz and 18 MHz operation only)
` Memory controller
- Decodes up to 6 separate memory segments of up to 256 Mbytes each
- Each segment can be configured as 8, 16, or 32 bits wide and supports page-mode access
- Programmable access time for conventional ROM / SRAM / FLASH memory
- Supports Removable FLASH card interface
- Enables connection to removable FLASH card for addition of expansion FLASH memory modules
` 38,400 bytes (0x9600) of on-chip SRAM for fast program execution and / or as a frame buffer
` Synchronous serial interface
- ADC (SSI) Interface: Master mode only; SPI and Microwire1-compatible (128 kbps operation)
` On-chip ROM; for manufacturing support
` 27-bits of general-purpose I/O
- Three 8-bit and one 3-bit GPIO port
- Supports scanning keyboard matrix
` Two UARTs (16550 type)
- Supports bit rates up to 115.2 kbps
- Contains two 16-byte FIFOs for TX and RX
- UART1 supports modem control signals
` SIR (up to 115.2 kbps) infrared encoder / decoder
- IrDA (Infrared Data Association) SIR protocol encoder / decoder
` DC-to-DC converter interface (PWM)
- Provides two 96-kHz clock outputs with programmable duty ratio (from 1-in-16 to 15-in-16) that can be used to drive a DC to DC converter
` Two timer counters
` 208-pin LQFP or new 256-ball PBGA packages
` Evaluation kit available with BOM, schematics, sample code, and design database
` Support for up to two ultra-low-power CL-PS6700 PC Card controllers
` Dedicated LED flasher pin from RTC
` Full JTAG boundary scan and Embedded ICE support
` Commercial operating temperature range


Pinout

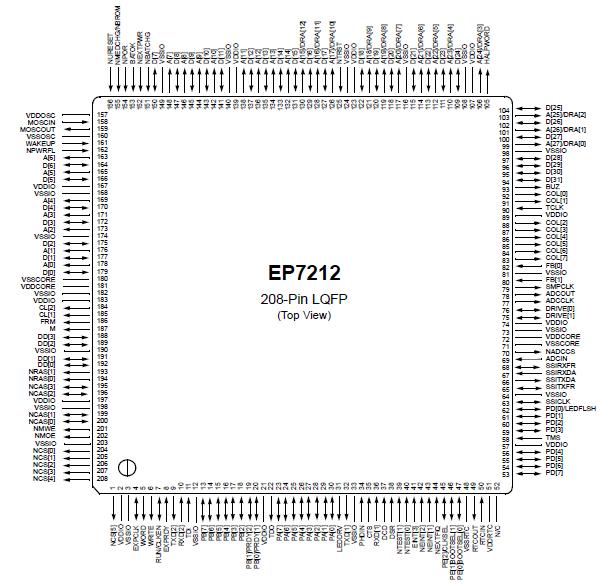

Connection Diagram


Specifications

DC Core, PLL, and RTC Supply Voltage 2.9 V
DC I/O Supply Voltage (Pad Ring) 3.6 V
DC Pad Input Current ±10 mA/pin; ±100 mA cumulative
Storage Temperature, No Power 40°C to +125°C



Description

The EP7212 is designed for ultra-low-power applications such as organizers / PDAs, two-way pagers, smart cellular phones or any vertical PDA device that features the added capability of digital audio decompression. The core-logic functionality of the device is built around an ARM720T processor with 8 K-bytes of four-way set-associative unified cache and a write buffer. Incorporated into the ARM720T is an enhanced memory management unit (MMU) which allows for support of sophisticated operating systems like Microsoft Windows CE.

The EP7212 also includes a 32-bit Y2K-compliant realtime clock and comparator.
