Description



Features:

` Dynamically programmable clock speeds of 18, 36, 49, and 74 MHz at 2.5 V
` Performance matching 100-MHz Intel Pentium-based PC
` Socket and register compatible with CL-PS7111
` Ultra low power
- Designed for applications that require long battery life while using standard AA/AAA batteries or rechargeable cells
- 170 mW at 74 MHz in the Operating State
- 50 mW at 18 MHz in the Operating State
- 15 mW in the Idle State (clock to the CPU stopped, everything else running)
- 10W in the Standby State (realtime clock 'on', everything else stopped)
` LCD controller
- Interfaces directly to a single-scan panel monochrome LCD
- Panel width size is programmable from 32 to 1024 pixels in 16-pixel increments
- Video frame buffer size programmable up to 128 kbytes
- Bits per pixel programmable from 1, 2, or 4
` ARM720T processor
- ARM7TDMI CPU
- 8 kbytes of four-way set-associative cache
- MMU with 64-entry TLB (transition look aside buffer)
- Write buffer
- Windows CE enabled
- Thumb® code support enabled
` DRAM controller
- Supports both 16- and 32-bit-wide DRAMs
- EDO support (fast page mode support for 13 MHz and 18 MHz operation only)
` ROM/SRAM/FLASH memory control
- Decodes 4, 5, or 6 separate memory segments of up to 256 Mbytes each
- Each segment can be configured as 8, 16, or 32 bits wide and supports page-mode access
- Programmable access time for conventional ROM/SRAM/Flash memory
` 37.5 kbytes of on-chip SRAM for fast program execution and/or as a frame buffer
` On-chip ROM; for manufacturing boot-up support
` Four synchronous serial interfaces
- ADC (SSI1) Interface: Master mode only; SPI1 and Microwire12-compatible (128 kbps operation)
- SSI2 Interface: Master/Slave mode; SPI/Microwire2 compatible (512 kbps operation)
- Audio Codec Interface (64 kbps operation)
- Multimedia Codec Port (Interfaces to Philips' UCB1100 and UCB1200 codecs) (9.216 Mbps operation)
` 27 bits of general-purpose I/O
- Three 8-bit and one 3-bit GPIO port
- Supports scanning keyboard matrix
` Two UARTs (16550 type)
- Supports bit rates up to 115.2 kbps
- Contains two 16-byte FIFOs for TX and RX
- UART1 supports modem control signals
` SIR (up to 115.2 kbps) infrared encoder
- IrDA (Infrared Data Association) SIR protocol encoder can be optionally switched into TX and RX signals of UART1
` PWM interface
- Provides two 96-kHz clock outputs with programmable duty ratio (from 1-in-16 to 15-in-16) that can be used to drive a DC-to-DC converter
` Two timer counters
` 208-pin LQFP or 256-ball PBGA packages
` Evaluation kit available with BOM, schematics, sample code, and design database
` Support for up to two ultra-low-power CL-PS6700 PC Card controllers
` Dedicated LED flasher pin from RTC
` Full JTAG boundary scan and Embedded ICE support


Pinout

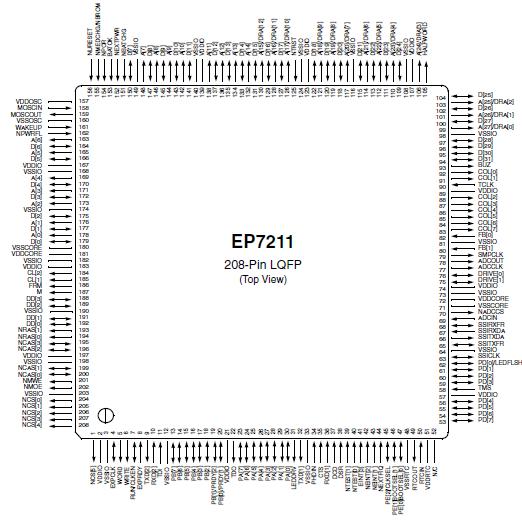

Connection Diagram


Specifications

DC Core, PLL, and RTC Supply Voltage 2.9 V
DC I/O Supply Voltage (Pad Ring) 3.6 V
DC Pad Input Current ±10 mA/pin; ±100 mA cumulative
Storage Temperature, No Power 40°C to +125°C



Description

The EP7211 is designed for ultra-low-power applications such as organizers/PDAs, two-way pagers, smart cellular phones, and industrial hand-held information appliances. The core-logic functionality of the device is built around an ARM720T processor with 8 kbytes of four-way set-associative unified cache and a write buffer. Incorporated into the ARM720T is an enhanced memory management unit (MMU), which allows for Microsoft Windows CE support.

The EP7211 also includes a 32-bit Y2K-compliant Real Time Clock (RTC) and comparator.
