EM78P870

Features: ‧Operating voltage range : 2.5V∼5.5V 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)‧32K×13 on chip Program Electrical One Time Programmable Read Only Memory (OTP-ROM)‧4K×8 on chip data RAM‧144 byte working register‧Up to 51 bi-directional tri-state I/O ...

product image

EM78P870 Picture
See larger image
SeekIC No. : 004336104 Detail

EM78P870: Features: ‧Operating voltage range : 2.5V∼5.5V 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)‧32K×13 on chip Program Electrical One Time Programmable Read Only Memory (OTP-ROM)̷...

EM78P870 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78P870
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

‧Operating voltage range : 2.5V∼5.5V 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)
‧32K×13 on chip Program Electrical One Time Programmable Read Only Memory (OTP-ROM)
‧4K×8 on chip data RAM
‧144 byte working register
‧Up to 51 bi-directional tri-state I/O ports (32 shared with LCD Segment pins)
‧IO with internal Pull high, wake-up and interrupt functions
‧STACK: 32 level stack for subroutine nesting
‧TCC: 8-bit real time clock/counter (TCC) with 8-bit prescaler
‧COUNTER1: 8-bit counter with 8-bit prescaler can be an interrupt source
‧COUNTER2: 8-bit counter with 8-bit prescaler can be an interrupt source
‧Watch Dog : Programmable free running on chip watchdog timer
‧12 interrupt source : 8 external , 4 internal
‧Key Scan : Port key scan function up to 16x4 keys
‧Sub-Clock: 32.768kHz crystal
‧Main-clock: 3.5826MHz multiplied by 0.25, 0.5, 1 or 3 generated by internal PLL
‧Key tone output (shared with IO) : 4kHz, 2kHz, 1kHz
‧Comparator: 3-channel comparators, internal (16 level) or external reference voltage (shared with IO)
‧Serial Peripheral Interface (SPI) : Interrupt flag available for the read buffer full, Programmable baud rates of
communication, Three-wire synchronous communication. (shared with IO)
‧128-pin QFP or chip : EM78P870AH (POVD disable) , EM78P870BH (POVD enable), EM78P870H


Pinout

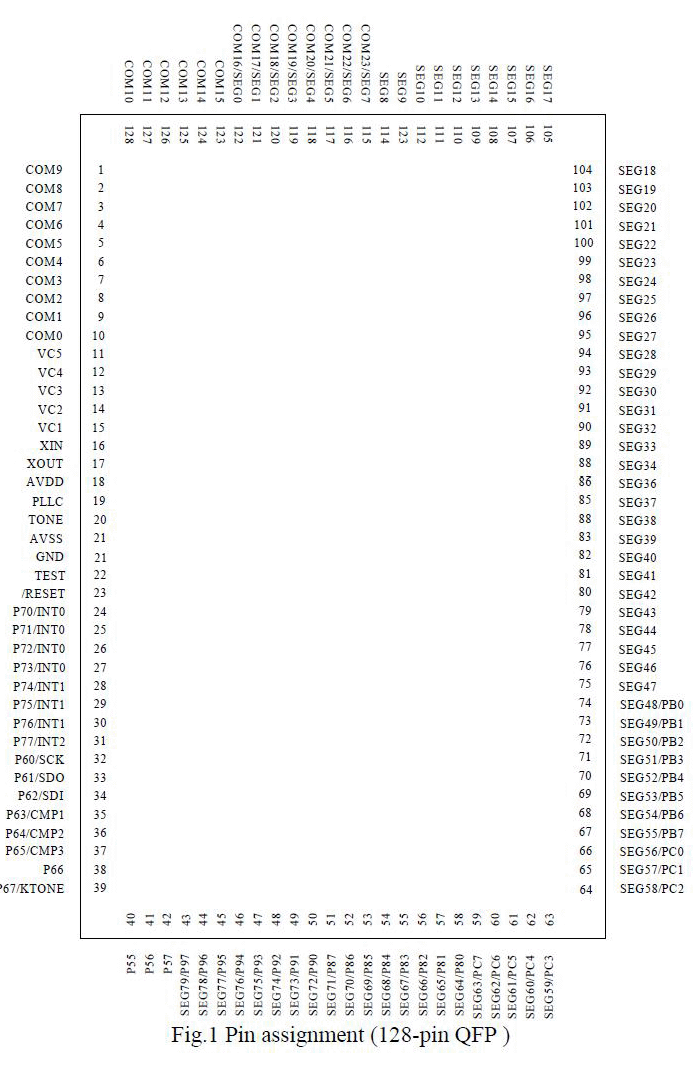

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
DC SUPPLY VOLTAGE Vdd -0.3 To 6 V
INPUT VOLTAGE Vin -0.5 TO Vdd +0.5 V
OPERATING TEMPERATURE RANGE Ta 0 TO 70



Description

The EM78P870 is an 8-bit RISC type microprocessor with low power, high speed CMOS technology. There are 32Kx13 bits Electrical One Time Programmable Read Only Memory (OTP-ROM) within it. Integrated onto a single chip are on_chip watchdog (WDT), RAM, programmable real time clock /counter, internal interrupt, power down mode, LCD driver, build-in KEY TONE clock generation, Programming Tone generators, Serial Peripheral Interface(SPI), comparator and tri-state I/O. The EM78P870 provides a single chip solution to design a message_display.
