EM785830AA

Features: ` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧ 16k x 13 on chip Program Memory‧ 0.5k x 8 on chip data RAM‧ Up to 21 bi-directional tri-state I/O ports(4 shared with AD input; 1 shared with external interrupt input )‧ 12 level stack for subroutine ...

product image

EM785830AA Picture
See larger image
SeekIC No. : 004336056 Detail

EM785830AA: Features: ` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧ 16k x 13 on chip Program Memory‧ 0.5k x 8 on chip data RAM‧ Up to 21 bi-directional tri-state I/O ports(4 ...

EM785830AA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM785830AA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.
‧ 16k x 13 on chip Program Memory
‧ 0.5k x 8 on chip data RAM
‧ Up to 21 bi-directional tri-state I/O ports(4 shared with AD input; 1 shared with external interrupt input )
‧ 12 level stack for subroutine nesting
‧ 8-bit real time clock/counter (TCC)
‧ Two 8-bit counters : COUNTER1 and COUNTER2
‧ On-chip watchdog timer (WDT)
‧ 99.9% single instruction cycle commands
‧ Four modes (Main clock can be programmed from 447.829k to 14.3MHz generated by internal PLL)
‧ 7 level Normal mode frequency : 447.8K , 895.7K , 1.79M , 3.58M , 7.16M , 10.75M and 14.3MHz.
‧ Input port interrupt function
‧ Dual clocks operation (Internal PLL main clock , External 32.768KHz)


Pinout

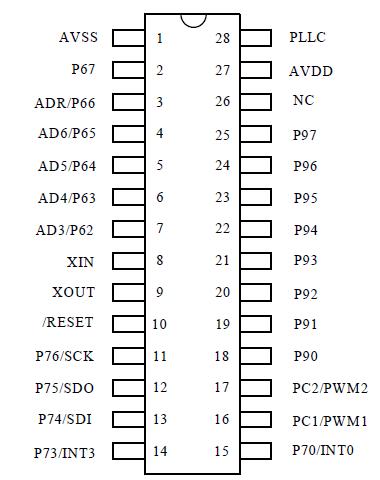

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
DC SUPPLY VOLTAGE VDD -0.3 To 6 V
INPUT VOLTAGE Vin -0.5 to VDD +0.5 V
OPERATING TEMPERATURE RANGE Ta 0 to 70



Description

The EM785830AA is an 8-bit RISC type microprocessor with low power, high speed CMOS technology. There are 16Kx13 bits ROM within it.
This integrated single chip has an on_chip watchdog timer (WDT, data RAM, programmable real time clock/counter, internal interrupt, power down mode, 4-channel 10-bit A/D converter, two channel PWM output, SPI and tri-state I/O.
