EM785830AD

Features: ` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧16k x 13 on chip Program Memory.‧ 0.5k x 8 on chip data RAM‧ Up to 31 bi-directional tri-state I/O ports‧ 12 level stack for subroutine nesting‧ 8-bit real time clock/counter (TCC)‧ two 8-b...

product image

EM785830AD Picture
See larger image
SeekIC No. : 004336057 Detail

EM785830AD: Features: ` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧16k x 13 on chip Program Memory.‧ 0.5k x 8 on chip data RAM‧ Up to 31 bi-directional tri-state I/O ports...

EM785830AD Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM785830AD
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.
‧16k x 13 on chip Program Memory.
‧ 0.5k x 8 on chip data RAM
‧ Up to 31 bi-directional tri-state I/O ports
‧ 12 level stack for subroutine nesting
‧ 8-bit real time clock/counter (TCC)
‧ two 8-bit counters : COUNTER1 and COUNTER2
‧ On-chip watchdog timer (WDT)
‧ 99.9% single instruction cycle commands
‧ Three operating modes (Main clock can be programmed from 447.829k to 14.3MHz generated by internal PLL)
` Input port interrupt function
` 12 interrupt source, 4 external, 8 internal
` Dual clocks operation (Internal PLL main clock , External 32.768KHz)


Application

Communication or general product.


Pinout

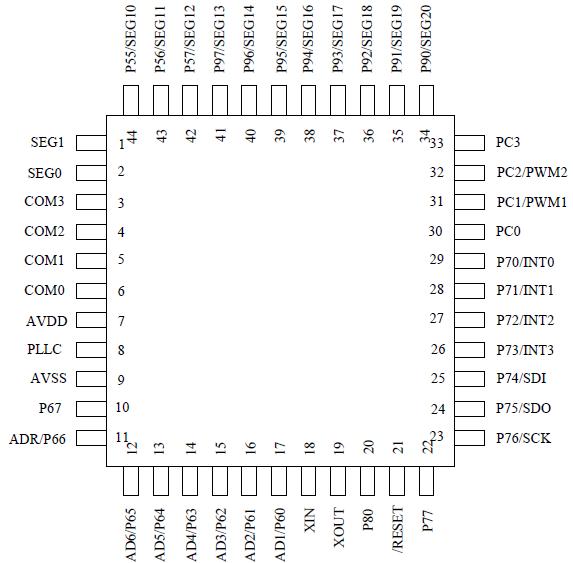

Connection Diagram


Description

The EM785830AD is an 8-bit RISC type microprocessor with low power, high speed CMOS technology. There are 16Kx13 bits Memory within it. This integrated single chip has an on_chip watchdog timer (WDT), program ROM, data RAM, LCD driver, programmable real time clock/counter, internal interrupt, power down mode, built-in three-wire SPI, dual PWM(Pulse Width Modulation), 6-channel 10-bit A/D converter and tri-state I/O.
