EM78P813: Features: CPU‧Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz. Main CLK(Hz) Under 3.58M 5.37M 10.74M Operating Voltage(min) 2.2 2.5 3‧64K×13 Program ROM‧256K×8 data ROM...

EM78P813 Data Sheet

Get Latest Price

Part Number:: EM78P813
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

  CPU
‧Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.
Main CLK(Hz) Under 3.58M 5.37M 10.74M
Operating Voltage(min) 2.2 2.5 3
‧64K×13 Program ROM
‧256K×8 data ROM
‧16K×8 data RAM
‧128×8 common register
‧Up to 56 bi-directional tri-state I/O ports (32 shared with LCD Segment pins)
‧IO with internal Pull high, wake-up and interrupt functions
‧STACK: 24 level stack for subroutine nesting
‧TCC: 8-bit real time clock/counter (TCC) with 8-bit prescaler
‧COUNTER1: 8 or 16 bit counter with 8-bit prescaler can be an interrupt source
‧COUNTER2: 8-bit counter with 8-bit prescaler can be an interrupt source
‧Watch Dog : Programmable free running on chip watchdog timer
‧CPU modes:
Mode CPU status Main clock 32.768kHz clock status
Sleep mode Turn off Turn off Turn off
Green mode Turn on Turn off Turn on
Normal mode Turn on Turn on Turn on
‧4 step Normal mode CLK : 1.79 , 3.58 , 5.37 , 10.74 MHz generated by internal PLL.
‧13 interrupt source , 8 external , 5 internal
‧Key Scan : Port key scan function up to 16x4 keys
‧Sub-Clock: 32.768KHz crystal.
‧Key tone output :4KHz, 2KHz ,1KHz (shared with IO)
‧Comparator: 3-channel comparators: internal (16 level) or external reference voltage. (shared with IO)
  Serial transmitter/receiver interface
‧Serial Peripheral Interface (SPI): Interrupt flag available for the read buffer full, Programmable baud rates of
communication, Three-wire synchronous communication. (shared with IO)
  Current D/A
‧Operation Voltage : 2.5V∼5.5V
‧10-bit resolution and 3-bit output level control
‧Current DA output can drive speaker through a transistor for sound playing. (shared with IO)
  Programmable Tone Generators
‧Operation Voltage 2.2V∼5.5V
‧Programmable Tone1 and Tone2 generators
‧Independent single tone generation for Tone1 and Tone2
‧Mixed dual tone generation by Tone1 and Tone2 with 2dB difference
‧Can be programmed for DTMF tone generation
‧Can be programmed for FSK signal (Bell202 or V.23) generation
  CID
‧Operation Voltage 2.7V∼5.5V for FSK
‧Operation Voltage 2.7V∼5.5V for DTMF receiver
‧Compatible with Bellcore GR-30-CORE (formerly as TR-NWT-000030)
‧Compatible with British Telecom (BT) SIN227 & SIN242
‧FSK demodulator for Bell 202 and ITU-T V.23 (formerly as CCITT V.23)
‧Differential Energy Detector (DED) for line energy detection
  CALL WAITING
‧Operation Voltage 2.6V∼5.5V
‧Compatible with Bellcore special report SR-TSV-002476
‧Call-Waiting (2130Hz plus 2750Hz) Alert Signal Detector
‧Good talkdown and talkoff performance
‧Sensitivity compensated by adjusting input OP gain
  LCD (16x112 , 24x106 , 32x98 )
‧Operating Voltage range:
Supply voltage : 2.5V to 5.5V
Through charge pump circuit and regulate adjusting, LCD device voltage : 3.6V to 5.3V
‧Maximum common driver pins : 16/24/32
‧Maximum segment driver pins : 112(SEG0..SEG111)/106(SEG0..SEG105)/ 106(SEG0..SEG97)
‧Shared COM16 ~ COM23 pins with SEG113 ~ SEG106 pins
‧Shared COM24 ~ COM31 pins with SEG105 ~ SEG98 pins
‧1/5 bias for 16 common mode , 1/6 bias for 24 common mode and 1/7 for 32 common mode
‧1/16, 1/24, 1/32 duty
‧32 Level LCD contrast control (software)
‧Internal resistor circuit for LCD bias.
  External LCD controller (64 x 256 dot MAX for a pair of Master and Slave LCD Driver)
‧Multi-chip operation(Master, Slave) available for external LCD device.
  Expand
‧128K Program ROM (64K on_chip and provided Parallel transmitter interface for 64K external
program ROM access.)Through external address & data bus, 2M byte Data ROM can be addressing.
  Package type
‧186 pin die : EM78P813H
‧208 pin QFP : EM78P813AQ(POVD disable)
EM78P813BQ(POVD enable)

Application

‧adjunct units
‧SMS phones
‧feature phones

Pinout

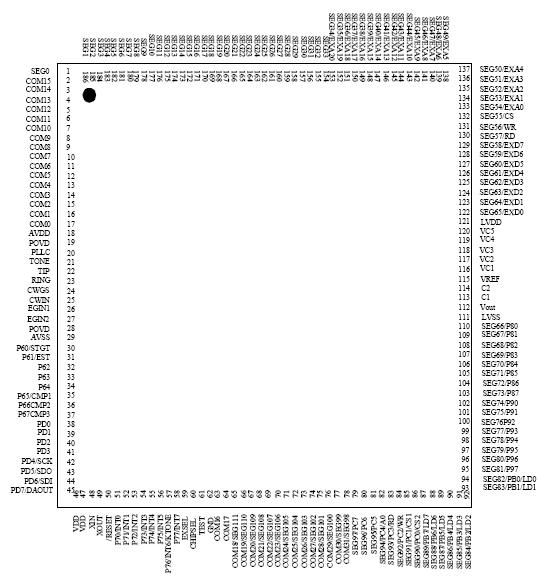

Connection Diagram

Specifications

RATING	SYMBOL	VALUE	UNIT
DC SUPPLY VOLTAGE	Vdd	-0.3 To 6	V
INPUT VOLTAGE	Vin	-0.5 TO Vdd +0.5	V
OPERATING TEMPERATURE RANGE	Ta	0 TO 70

Description

The EM78P813 is an 8-bit CID (Call Identification) RISC type microprocessor with low power, high speed CMOS technology. There are 64Kx13 bits and 256Kx8 bits Electrical One Time Programmable Read Only Memory (OTP-ROM) within it. It provides security bits and some One time programmable Option bits to protect the OTP memory code from any external access as well as to meet user's options.

Integrated onto a single chip are on chip watchdog (WDT), programmable real time clock/counter, external/internal interrupt, power down mode, LCD driver, FSK decoder, Call waiting decoder, Energy Detector (DED) , DTMF receiver, Programming Tone generator, build-in KEY TONE clock generation, Comparator and tri-state I/O. The EM78P813 provides a single chip solution to design a CID of calling message display.
