EM78P5842

Features: ‧ Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧ 4k x 13 on chip Electrical One Time Programmable Read Only Memory (OTP-ROM)‧ 144 x 8 on chip general propose RAM‧ Up to 19 bi-directional and 3 input only general purpose I/O‧ 8 level stack for ...

product image

EM78P5842 Picture
See larger image
SeekIC No. : 004336099 Detail

EM78P5842: Features: ‧ Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.‧ 4k x 13 on chip Electrical One Time Programmable Read Only Memory (OTP-ROM)‧ 144 x 8 on chip general propo...

EM78P5842 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78P5842
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

‧ Operating voltage : 2.2V~5.5V at main CLK less then 3.58MHz.
‧ 4k x 13 on chip Electrical One Time Programmable Read Only Memory (OTP-ROM)
‧ 144 x 8 on chip general propose RAM
‧ Up to 19 bi-directional and 3 input only general purpose I/O
‧ 8 level stack for subroutine nesting
‧ 8-bit real time clock/counter (TCC)
‧ One 8-bit counter interrupt
‧ On-chip watchdog timer (WDT)
‧ 99.9% single instruction cycle commands
‧ Three action modes in Crystal mode (Main clock can be programmed to 3.58M or 14.3M Hz)
‧ 2 level Normal mode frequency: 3.58M and 14.3MHz.
‧ Input port interrupt function
‧ Dual clocks operation (Internal PLL main clock , External 32.768KHz)


Pinout

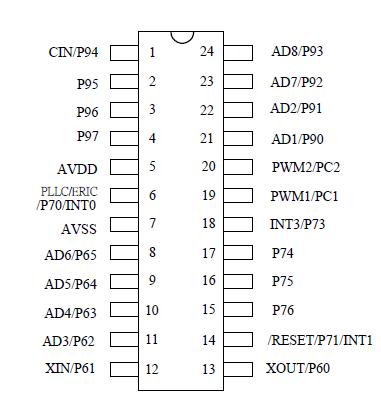

Connection Diagram




Specifications

RATING
SYMBOL
VALUE
UNIT
DC SUPPLY VOLTAGE
VDD
-0.3 To 6
V
INPUT VOLTAGE
Vin
-0.5 to VDD +0.5
V
OPERATING TEMPERATURE RANGE
Ta
0 to 70



Description

The EM78P5840 series are 8-bit RISC type microprocessor with low power, high speed CMOS technology. There are 4Kx13 bits Electrical One Time Programmable Read Only Memory (OTP-ROM) within it. It provides security bits and some One time programmable Option bits to protect the OTP memory code from any external access as well as to meet user's options.

This integrated single chip EM78P5840 series has an on_chip watchdog timer (WDT), program OTP-ROM, RAM, programmable real time clock/counter, internal interrupt, power down mode, dual PWM (Pulse Width Modulation), 8-channel 10-bit A/D converter and tri-state I/O.
