Product Details

Description

Features:

`Operating voltage and temperature range:
􀁺 * Commercial: 2.2V ~ 5.5 V. (at 0~+70)
􀁺 * Industrial: 2.5V ~ 5.5 V. / (at -40~+85)
`Operation speed: DC ~ 10MHz clock input.
`Dual clock operation
􀁺 * High frequency oscillator can select among Crystal, RC, or PLL (phase lock loop)
􀁺 * Low frequency oscillator can select between Crystal or RC mode
`Totally 272 bytes SRAM
􀁺 * 144 bytes general purpose register
􀁺 * 128 bytes on chip data RAM
`4K*13 bits OTP - ROM (One Time Programmable - Read Only Memory)
`Up to 28 bi-directional tri-state I/O ports
􀁺 * Typically, 12 bi-directional tri-state I/O ports.
􀁺 * 16 bi-directional tri-state I/O ports shared with LCD segment output pin.
`8-level stack for subroutine nesting
`8-bit real time clock/counter (TCC)
`One infrared transmitter/PWM generator function
`Four sets of 8 bits auto reload down-count timer can be used as interrupt sources
􀁺 * Counter 1: independent down-count timer
􀁺 * Counter 2, High Pulse Width Timer (HPWT), and Low Pulse Width Timer (LPWT) shared with IR function.
`Programmable free running on chip watchdog timer (WDT). This function can operate on Normal, Green and Idle mode.
`Operation modes:
􀁺 *Normal mode: The CPU operated on frequency of main oscillator (Fm)
􀁺 *Green mode: The CPU operated on frequency sub-oscillator (Fs) and main oscillator (Fm) stop.
􀁺 *Idle mode: CPU idle, LCD display remains working
􀁺 *Sleep mode: whole chip stop working.
`Input port wake up function (PORT6, PORT8). Working on Idle and leep mode.
`Eight interrupt sources, three external and five internal.
􀁺 * Internal interrupt source : TCC; Counter 1,2; High/Low pulse width timer.
􀁺 * External interrupt source : INT0, INT1 and Pin change wake-up (Port 6 and Port 8)
`Packages:
* Dice form : 59 pin
* QFP-64 pin : EM78P468NQ (Body 14mm*20mm)
􀁺 * LQFP-64 pin : EM78P468NAQ (Body 7mm*7mm)
􀁺 * LQFP-44 pin : EM78P468NBQ (Body 10mm*10mm)
􀁺 * QFP-44 pin : EM78P468NCQ (Body 10mm*10mm)

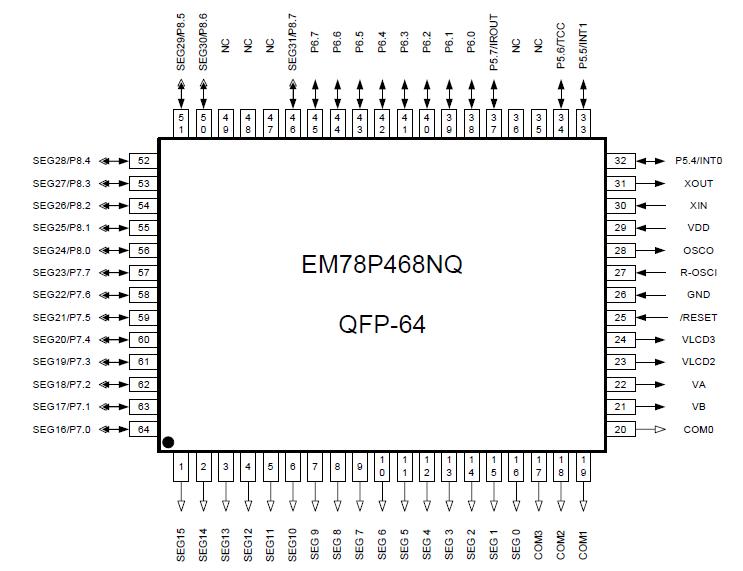

Pinout

Connection Diagram

Specifications

Items	Symbol	Condition	Ratin g		Unit
Items	Symbol	Condition	Min.	Max.	Unit
Suppy voltage	VDD		GND-0.3	+7.0	V
Input voltage	VI	PORT5,PORT6,PORT7,PORT8	GND-0.3	VDD+0.3	V
Output voltage	VO	PORT5,PORT6,PORT7,PORT8	GND-0.3	VDD+0.3	V
Operation temperature	TOPR		-40	85
Storage temperature	TSTG		-65	150
Power dissipation	PD			500	mW
Operating Frequency			32.768K	100M	Hz

Description

This LSI is an 8-bit RISC type microprocessor with high speed CMOS technology and low power consumption. Integrated onto a single chip are on chip watchdog timer (WDT), Data RAM, ROM, programmable real time clock counter, internal/external interrupt, power down mode, LCD driver, infrared transmitter function, and tri-state I/O. The EM78P468N provides multi-protection bits to protect against intrusion of user's code in the OTP memory and a seven option bits to accommodate user's requirements. It also provides an especial 13 bits customer ID option.
With its OTP-ROM feature, this LSI offers a convenient way of developing and verifying user's programs. Moreover, user developed code can be easily programmed with the ELAN writer.
