EM78P447N

Features: • Operating voltage range: 2.5V~5.5V.• Operating temperature range: -40°C~85°C.• Operating frequency rang( base on 2 clocks)* Crystal mode: DC~20MHz at 5V, DC~8MHz at 3V, DC~4MHz at 2.5V.* RC mode: DC~4MHz at 5V, DC~4MHz at 3V, DC~4MHz at 2.5V.• Low power consumpt...

product image

EM78P447N Picture
See larger image
SeekIC No. : 004336086 Detail

EM78P447N: Features: • Operating voltage range: 2.5V~5.5V.• Operating temperature range: -40°C~85°C.• Operating frequency rang( base on 2 clocks)* Crystal mode: DC~20MHz at 5V, DC~8MHz at 3V,...

EM78P447N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78P447N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage range: 2.5V~5.5V.
• Operating temperature range: -40°C~85°C.
• Operating frequency rang( base on 2 clocks)
* Crystal mode: DC~20MHz at 5V, DC~8MHz at 3V, DC~4MHz at 2.5V.
* RC mode: DC~4MHz at 5V, DC~4MHz at 3V, DC~4MHz at 2.5V.
• Low power consumption:
* Less then 2.2 mA at 5V/4MHz
* Typically 35 A, at 3V/32KHz
* Typically 2 A, during sleep mode
• 4K * 13 bits on chip ROM
• Three protection bits to prevent intrusion of OTP memory codes
• One configuration register to accommodate user's requirements
• 148* 8 bits on chip registers(SRAM, general purpose register)
• 3 bi-directional I/O ports
• 5 level stacks for subroutine nesting
• 8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt
• Two clocks per instruction cycle
• Power down (SLEEP) mode
• Two available interruptions
* TCC overflow interrupt
* External interrupt
• Programmable free running watchdog timer
• 10 programmable pull-high pins
• 2 programmable open-drain pins
• 2 programmable R-option pins
• Package types:
* 28 pin DIP 600mil: EM78P447NAP
* 28 pin SOP 300mil : EM78P447NAM
* 28 pin SSOP 209mil: EM78P447NAS
* 32 pin DIP 600mil: EM78P447NBP
* 32 pin SOP 450mil : EM78P447NBWM
• 99.9% single instruction cycle commands
• The transient point of system frequency between HXT and LXT is around 400KHz


Pinout

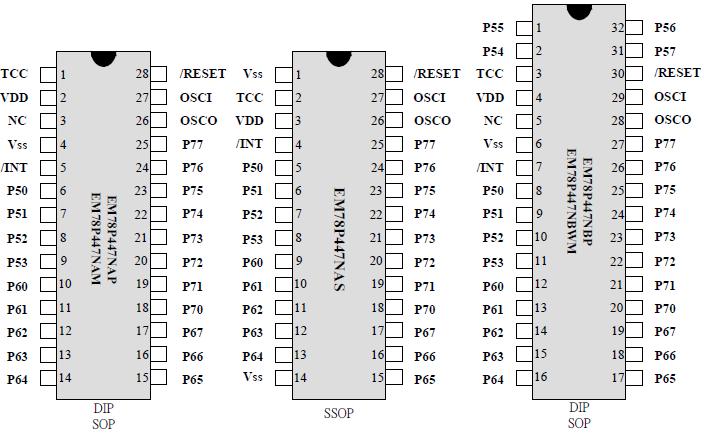

Connection Diagram


Specifications

Temperature under bias                            -40 to 85
Storage temperature                              -65 to 150
Input voltage                             VSS-0.3V to VDD+0.5V
Output voltage                          VSS-0.3V to VDD+0.5V
Operating Frequency (2clk)          32.768KHz to 20MHz
Operating Voltage                                     2.5V to 5.5V


Description

EM78P447N is an 8-bit microprocessor with low-power and high-speed CMOS technology and high noise immunity. It is equipped with 4K*13-bits Electrical One Time Programmable Read Only Memory (OTP-ROM). It provides three PROTECTION bits to prevent user's code in the OTP memory from being intruded. Seven OPTION bits are also available to meet user's requirements.

With its OTP-ROM feature, the EM78P447N is able to offer a convenient way of developing and verifying user's programs. Moreover, user can take advantage of ELAN Writer to easily program his development code.
