EM78P259N

Features: `Operating voltage range: 2.3V~5.5V base on 0°C ~ 70°C (commercial) 2.5V~5.5V base on 40°C ~ 85°C (industrial)`Operating frequency range (base on 2 clocks):*Crystal mode: DC ~ 20MHz/2clks, 5V; DC ~ 8MHz/2clks, 3V*RC mode: DC ~ 4MHz/2clks, 5V; DC ~ 4MHz/2clks, 3V`Low power consumption:*Le...

product image

EM78P259N Picture
See larger image
SeekIC No. : 004336079 Detail

EM78P259N: Features: `Operating voltage range: 2.3V~5.5V base on 0°C ~ 70°C (commercial) 2.5V~5.5V base on 40°C ~ 85°C (industrial)`Operating frequency range (base on 2 clocks):*Crystal mode: DC ~ 20MHz/2clks,...

EM78P259N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78P259N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Operating voltage range: 2.3V~5.5V base on 0°C ~ 70°C (commercial) 2.5V~5.5V base on 40°C ~ 85°C (industrial)
`Operating frequency range (base on 2 clocks):
* Crystal mode: DC ~ 20MHz/2clks, 5V; DC ~ 8MHz/2clks, 3V
* RC mode: DC ~ 4MHz/2clks, 5V; DC ~ 4MHz/2clks, 3V
`Low power consumption:
* Less than 1.9 mA at 5V/4MHz
* Typically 15 A, at 3V/32kHz
* Typically 1 A, during sleep mode
`Built-in RC oscillator 4MHz, 8MHz,1MHz, 455kHz (auto calibration)
`Programmable WDT time (4.5ms:18ms)
`Independent Programmable prescaler of WDT
`One configuration register to match your requirements, and user's ID code for customer use is provided
`80* 8 on chip registers (SRAM, general purpose register)
`2K * 13 on-chip ROM
`Bi-directional I/O ports
`8-level stacks for subroutine nesting
`8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt
`8-bit real time clock/counter (TCCA, TCCC) and 16-bit real time clock/counter (TCCB) with selective signal sources, trigger edges, and overflow interrupt
`One pair of comparators (can act as an OP)
`4-bit multi-channel Analog-to-Digital Converter with 12-bit resolution
􀂄 Easily-implemented IR (Infrared remote control) application circuit
􀂄 Power down (SLEEP) mode
􀂄 Six interrupt sources:
• TCC, TCCA, TCCB, and TCCC overflow interrupt
• Input-port status change interrupt (wake-up from sleep mode)
• External interrupt
• Comparators status change interrupt
• IR/PWM interrupt
• ADC completion interrupt
`Programmable free running watchdog timer
`8 programmable pull-high I/O pins
`8 programmable open-drain I/O pins
`8 programmable pull-down I/O pins.
`Two or Four clocks per instruction cycle
`Package types:
* 18-pin DIP 300mil : EM78P259NP
* 18-pin SOP 300mil : EM78P259NM
* 20-pin DIP 300mil : EM78P260NP
* 20-pin SOP 300mil : EM78P260NM
* 20-pin SSOP 209mil : EM78P260NKM
`Power-on voltage detector available (2.0V± 0.1V)


Pinout

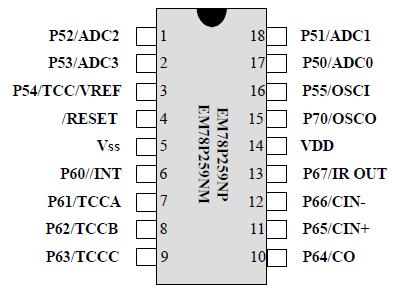

Connection Diagram


Specifications

Items
Rating
Temperature under bias
-40 to 85
Storage temperature
-65 to 150
Input voltage
Vss-0.3V to Vdd+5.5V
Output voltage
Vss-0.3V to Vdd+5.5V
Working Voltage

2.5V to 5.5V
Working Frequency
DC to 20MHz



Description

EM78P259N and EM78P260N are 8-bit microprocessors designed and developed with low-power and high-speed CMOS technology. It is equipped with a 2K*13-bit Electrical One Time Programmable Read Only Memory (OTP-ROM). With its OTP-ROM feature, it is able to offer a convenient way of developing and verifying your programs. Moreover, it provides a protect bit to guard against code intrusion, as well as 3 Code Option words to accommodate your requirements. Furthermore you can take advantage of ELAN Writer to easily write your development code into the EM78P259N and EM78P260N.
