EM78870

Features: •Operating voltage range : 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)•32K× 13 on chip Program ROM•2.5K× 8 on chip data RAM•144 byte working register•Up to 51 bi-directional tri-state I/O ports (32 shared with LCD Segment pins)•IO with internal Pull ...

product image

EM78870 Picture
See larger image
SeekIC No. : 004336063 Detail

EM78870: Features: •Operating voltage range : 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)•32K× 13 on chip Program ROM•2.5K× 8 on chip data RAM•144 byte working register•Up to ...

EM78870 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM78870
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Operating voltage range : 2.2V~5.5V(Normal mode), 2.0V~5.5V(Green mode)
•32K× 13 on chip Program ROM
•2.5K× 8 on chip data RAM
•144 byte working register
•Up to 51 bi-directional tri-state I/O ports (32 shared with LCD Segment pins)
•IO with internal Pull high, wake-up and interrupt functions
•STACK: 32 level stack for subroutine nesting
•TCC: 8-bit real time clock/counter (TCC) with 8-bit prescaler
•COUNTER1: 8-bit counter with 8-bit prescaler can be an interrupt source
•COUNTER2: 8-bit counter with 8-bit prescaler can be an interrupt source
•Watch Dog : Programmable free running on chip watchdog timer
•12 interrupt source : 8 external , 4 internal
•Key Scan : Port key scan function up to 16x4 keys
•Sub-Clock: 32.768kHz crystal
•Main-clock: 3.5826MHz multiplied by 0.25, 0.5, 1 or 3 generated by internal PLL
•Key tone output (shared with IO) : 4kHz, 2kHz, 1kHz
•Comparator: 3-channel comparators, internal (16 level) or external reference voltage (shared with IO)
•Serial Peripheral Interface (SPI) : Interrupt flag available for the read buffer full, Programmable baud rates of communication, Three-wire synchronous communication. (shared with IO)


Application

Cordless phones or any telephone product with large LCD needed


Pinout

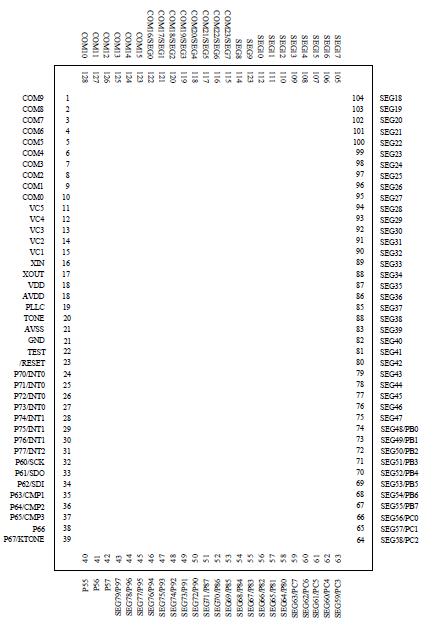

Connection Diagram


Description

The EM78870 is an 8-bit RISC type microprocessor with low power, high speed CMOS technology. Integrated onto a single chip are on_chip watchdog (WDT), RAM, ROM, programmable real time clock /counter, internal interrupt, power down mode, LCD driver, build-in KEY TONE clock generation, Programming Tone generators, Serial Peripheral Interface(SPI), comparator and tri-state I/O. The EM78870 provides a single chip solution to design a message_display.
