Features:

·Operating voltage range: 2.2V ~ 5.5V
·Operating temperature range: ¨C2C ~ +70C.
·32.768KHz Crystal/RC oscillation circuit selected by code option for system clock
·144 byte general purpose register
·640 x 8 bits on-chip data RAM
·8K x 13 on-chip mask type program ROM.
·Up to 29 bi-directional tri-state I/O ports
·8-level stack for subroutine nesting
·8-bit real time clock/counter (TCC)
·Programmable free running on-chip watchdog timer
·Port key scan function
·Operation mode: a) Normal mode; b) Green mode; c).Idle mode; d) Sleep mode
· Input port wake-up function (Port 9)
·7 interrupt sources:
    4 external (INT0 ~ INT3)
    3 internal (one TCC timer overflow interrupt + two 8-bit counters overflow interrupt)
·64-pin chip form (EM78869)


Application

·Data Bank
·Message display box
·Scientific calculator


Pinout

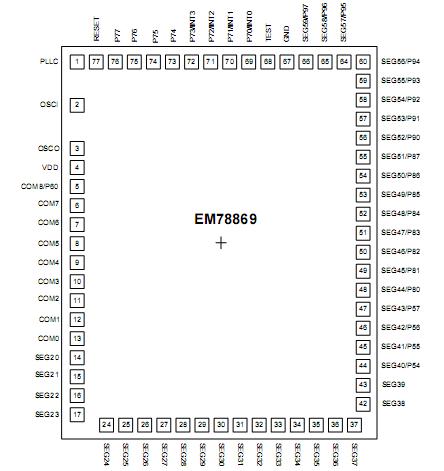

Connection Diagram


Description

The EM78869 is an 8-bit RISC type microprocessor with low power, high speed CMOS technology. Integrated into the single chip are on chip watchdog (WDT), RAM, ROM, programmable real-time clock/counter, internal interrupt, power-down mode, LCD driver, and tri-state I/O. The EM78869 provides a single chip solution for designing DATA-BANK of message display.
