EL5624A

Features: ·6 x gamma buffers·Single high power VCOMamplifier·260mA peak VCOMoutput current·Low power - just 8.5mA·Pb-free available (RoHS compliant)Application·TFT-LCD displays·Flat panel monitors·Notebook displays·LCD-TVsPinoutSpecificationsSupply Voltage between VS+ and VS -. . . . . . . . . . ....

product image

EL5624A Picture
See larger image
SeekIC No. : 004335537 Detail

EL5624A: Features: ·6 x gamma buffers·Single high power VCOMamplifier·260mA peak VCOMoutput current·Low power - just 8.5mA·Pb-free available (RoHS compliant)Application·TFT-LCD displays·Flat panel monitors·N...

EL5624A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5624A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·6 x gamma buffers
·Single high power VCOM amplifier
·260mA peak VCOM output current
·Low power - just 8.5mA
·Pb-free available (RoHS compliant)


Application

·TFT-LCD displays
·Flat panel monitors
·Notebook displays
·LCD-TVs


Pinout

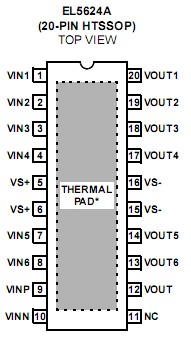

Connection Diagram


Specifications

Supply Voltage between VS+ and VS -. . . . . . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .VS- -0.5V, VS + +0.5V
Maximum Continuous Output Current (Buffer) . . . . . . . . . . . . 30mA
Maximum Continuous Output Current (VCOM) . . . . . . . . . . . . 60mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65 to +150
Operating Conditions. . . . . . . . . . . . . . . . . . . . . . . . .-40 to +85



Description

The EL5624A integrates six gamma reference buffers with a single high power V  amplifier. Each gamma buffer has a COM bandwidth of 12MHz and features a slew rate of 15V/s. The output current is rated at 30mA continuous, 140mA peak.

The VCOM amplifier is rated for 260mA peak output current and also features higher slew rate (70V/|ìs) and bandwidth (35MHz) for use in error cancellation circuits.

The EL5624A is available in the 20-pin HTSSOP package  and is specified for operation over the -40!aC to +85!a temperature range.
