EL5611

Features:

`60MHz -3dB bandwidth
`Supply voltage = 4.5V to 16.5V
`Low supply current (per amplifier) = 2.5mA
`High slew rate = 75V/A
`Unity-gain stable
`Beyond the rails input capability
`Rail-to-rail output swing
`±180mA output short curren
`Pb-Free plus anneal available (RoHS compliant)




Application

·TFT-LCD panels
·VCOMamplifiers
·Drivers for A-to-D converters
·Data acquisition
·Video processing
·Audio processing
·Active filters
·Test equipment
·Battery-powered applications
·Portable equipment

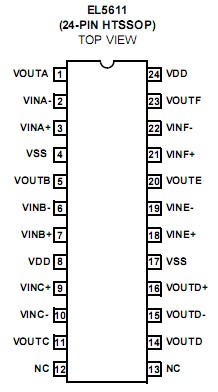

Pinout






Specifications

Supply Voltage between VS + and VS -. . . . . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . VS- - 0.5V, VS +0.5V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 65mA
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40 to +85
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves




Description

The EL5611 and EL5811 are low power, high voltage rail-to-rail inputoutput amplifiers targeted primarily at VCOM applications in TFT-LCD displays. The EL5611 contains six amplifiers, and the EL5811 contains eight amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 2.5mA per amplifier, the EL5611 and EL5811 have a bandwidth of 60MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to offer maximum dynamic range at any supply voltage. The EL5611 and EL5811 also feature fast slewing and settling times, as well as a high output drive capability of 65mA (sink and source). In addition to VCOM applications, these features make these amplifiers ideal for high speed filtering and signal conditioning application. Other applications include battery power, portable devices, and anywhere low power consumption is important. The EL5611 is available in 8-pin MSOP and 8-pin HMSOP packages. The EL5811 is available in space-saving 28-pin HTSSOP packages.These amplifiers operate over a temperature range of -40C to +85C.The EL5611 and EL5811 are low power, high voltage rail-to-rail inputoutput amplifiers targeted primarily at VCOM applications in TFT-LCD displays. The EL5611 contains six amplifiers, and the EL5811 contains eight amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 2.5mA per amplifier, the EL5611 and EL5811 have a bandwidth of 60MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to offer maximum dynamic range at any supply voltage. The EL5611 and EL5811 also feature fast slewing and settling times, as well as a high output drive capability of 65mA (sink and source). In addition to VCOM applications, these features make these amplifiers ideal for high speed filtering and signal conditioning application. Other applications include battery power, portable devices, and anywhere low power consumption is important. The EL5611 is available in 8-pin MSOP and 8-pin HMSOP packages. The EL5811 is available in space-saving 28-pin HTSSOP packages.These amplifiers operate over a temperature range of -40C to +85C.
