EL5396C-reliminary

Features:

Gain selectable (+1, -1, +2)
400MHz -3dB Bandwidth (AV = 1,2)
9mA supply current (per amplifier)
Single and dual supply operation,from 5V to 10V
Power-down
Available in 16-pin QSOP package
Single (EL5196C) available
200MHz, 3mA product available(EL5197C, EL5397C)


Application

Video Amplifiers
Cable Drivers
RGB Amplifiers
Test Equipment
Instrumentation
Current to Voltage Converters

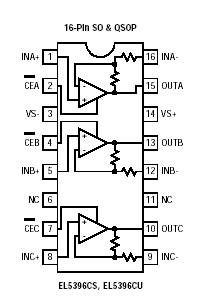

Pinout




Specifications

Supply Voltage between VS+ and VS-                                  11V
Maximum Continuous Output Current                                50mA
Operating Junction Temperature                                     125°C
Power Dissipation                                                    See Curves
Pin Voltages VS-                                            - 0.5V to VS+ +0.5V
Storage Temperature                                      -65°C to +150°C
Operating Temperature                                     -40°C to +85°C
Lead Temperature                                                             260°C


Description

The EL5396C is a triple channel, fixed gain amplifier with a bandwidthof 400MHz, making these amplifiers ideal for today's highspeed video and monitor applications. The EL5396C features internalgain setting resistors and can beconfigured in a gain of +1, -1 or +2.The same bandwidth is seen in both gain-of-1 and gain-of-2applications.
The EL5396C can be run from a single or dual supply voltage of 5V to10V and consumes just 9mA of supply current per channel. Eachchannel of the EL5396C has a disable. Upon being disabled, the outputsare tri-stated and the power supply current reduces to less than150µA per amplifier. Allowing the CE pin to float, or applying a lowlogic level will enable the amplifier.
For applications where board space is critical, the EL5396C is offeredin the 16-pin QSOP package, as well as a 16-pin SO. The EL5396C isspecified for operation over the full industrial temperature range of ----40°C to +85°C.
