EL5300

Features: * Pb-free available as an option* Specified for 5V or ±5V applications* Power-down to 17A/amplifier* -3dB bandwidth = 200MHz* ±0.1dB bandwidth = 20MHz* Low supply current = 2.5mA* Slew rate = 2200V/s* Low offset voltage = 4mV max* Output current = 100mA* A = 1000VOL* Diff gain/phase = 0....

product image

EL5300 Picture
See larger image
SeekIC No. : 004335447 Detail

EL5300: Features: * Pb-free available as an option* Specified for 5V or ±5V applications* Power-down to 17A/amplifier* -3dB bandwidth = 200MHz* ±0.1dB bandwidth = 20MHz* Low supply current = 2.5mA* Slew rat...

EL5300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Pb-free available as an option
* Specified for 5V or ±5V applications
* Power-down to 17A/amplifier
* -3dB bandwidth = 200MHz
* ±0.1dB bandwidth = 20MHz
* Low supply current = 2.5mA
* Slew rate = 2200V/s
* Low offset voltage = 4mV max
* Output current = 100mA
* A = 1000VOL
* Diff gain/phase = 0.08%/0.1°




Application

* Video amplifiers
* PCMCIA applications
* A/D drivers
* Line drivers
* Portable computers
* High speed communications
* RGB applications
* Broadcast equipment
* Active filtering




Pinout

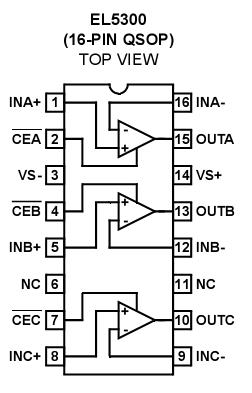

Connection Diagram




Specifications

Supply Voltage between VS + and GND. . . . . . . . . . . . . . . . . . 13.2V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±4V
Maximum Output Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80mA
Storage Temperature Range . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature Range . . . . . . . ..-40°C to +85°C
Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . . 150°C




Description

The EL5100, EL5101, and EL5300 represent high-speed voltage feedback amplifiers based on the current feedback amplifier architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. This family is available in single, dual, and triple versions, with 200MHz, 400MHz, and 700MHz versions. This family operates on single 5V or ±5V supplies from minimum supply current. The EL5100 and EL5300 also feature an output enable function, which can be used to put the output in to a high-impedance mode. This enables the outputs of multiple amplifiers to be tied together for use in multiplexing applications.
